Manufacturer Part #
L6472H

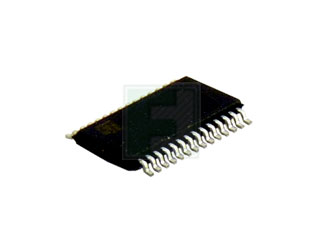

L6472 Series 45 V Dual Full Bridge dSPIN Microstepping Motor Driver - HTSSOP-28
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:HTSSOP-28 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2425 | ||||||||||
Product Specification Section
STMicroelectronics L6472H - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
STMicroelectronics L6472H - Technical Attributes
Attributes Table
| Motor Type: | MicroStepping |
| No of Outputs: | Quad |
| Output Current-Max: | 3A |
| Rated Power Dissipation: | 5W |
| Supply Voltage-Max: | 45V |
| Supply Voltage: | 8V to 45V |
| Fall Time: | 375ns |
| Rise Time: | 300ns |
| Interface: | SPI |
| Operating Temp Range: | -40°C to +150°C |
| Package Style: | HTSSOP-28 |
| Mounting Method: | Surface Mount |
Features & Applications
Pricing Section
Global Stock:
3,000
USA:
3,000
Factory Lead Time:
20 Weeks
Quantity
Unit Price
50
$3.44
150
$3.39
250
$3.37
500
$3.34
1,000+
$3.29
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Package Style:
HTSSOP-28
Mounting Method:
Surface Mount
