Manufacturer Part #

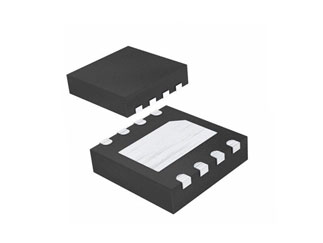

2EDL8124GXUMA1
Driver 4A 2-OUT High and Low Side Half Brdg Non-Inv 8-Pin VDSON EP T/R
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:6000 per Reel Package Style:VDFN-8 (3 x 3) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon 2EDL8124GXUMA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2EDL8124GXUMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--peripheral-drivers/2edl8124gxuma1-infineon-3172146
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2EDL8124GXUMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--peripheral-drivers/2edl8124gxuma1-infineon-3172146
Infineon 2EDL8124GXUMA1 - Technical Attributes
Attributes Table
| Configuration: | High and Low Side |
| No of Outputs: | Dual |
| Output Current: | 4A |
| Supply Voltage-Max: | 17V |
| Rise Time: | 54ns |
| Fall Time: | 54ns |
| Operating Temp Range: | -40°C to +125°C |
| Package Style: | VDFN-8 (3 x 3) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
6,000+
$0.495
Product Variant Information section
Available Packaging
Package Qty:
6000 per Reel
Package Style:
VDFN-8 (3 x 3)
Mounting Method:
Surface Mount
