Manufacturer Part #

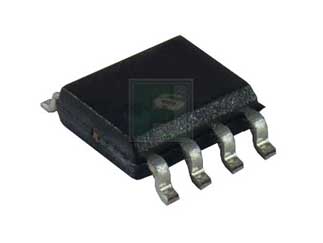

MCP14A0155-E/SN
Gate Drivers 1.5A Dual MOSFET Driver
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:400 per Tube Package Style:SOIC-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2414 | ||||||||||
Product Specification Section
Microchip MCP14A0155-E/SN - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Microchip MCP14A0155-E/SN - Technical Attributes
Attributes Table
| Configuration: | Low Side |
| No of Outputs: | Dual |
| Output Impedance: | 4.5Ω |
| Peak Output Current: | 1.5A |
| Supply Voltage-Max: | 18V |
| Rated Power Dissipation: | 1W |
| Quiescent Current: | 675µA |
| Rise Time: | 11.5ns |
| Fall Time: | 10ns |
| Operating Temp Range: | -40°C to +125°C |
| Package Style: | SOIC-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
200
USA:
200
On Order:
0
Factory Lead Time:
6 Weeks
Quantity
Unit Price
400
$0.95
800
$0.935
1,200
$0.93
1,600
$0.92
2,000+
$0.905
Product Variant Information section
Available Packaging
Package Qty:
400 per Tube
Package Style:
SOIC-8
Mounting Method:
Surface Mount
