STMicroelectronics | IPS1025HQ

Manufacturer Part #

IPS1025HQ

High efficiency, high-side switch with extended diagnostics

ECAD Model:
Mfr. Name: STMicroelectronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
STMicroelectronics IPS1025HQ - Technical Attributes
Attributes Table
Clamping Voltage-Max: 73.5V
Configuration: High Side
Input Voltage: 8V to 60V
No of Elements: Single
On-state Resistance-Max: 15mΩ
Rated Current-Max: 2.4A
Type: Power Switch
Operating Temp Range: -40°C to +150°C
Turn-off Delay Time: 60µs
Turn-on Delay Time: 13µs
Current - Limit: 9A
Rise Time: 30µs
Fall Time: 25µs

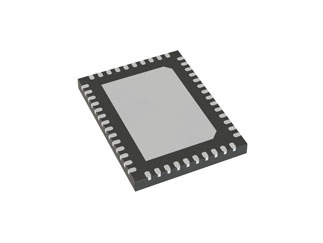

Package Style:  VFQFPN-48
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
-1
Factory Lead Time:
25 Weeks
Minimum Order:
2500
Multiple Of:
2500
Total
$7,525.00
USD
Quantity
Unit Price
1
$3.31
15
$3.20
75
$3.14
250
$3.10
1,250+
$3.01
