Manufacturer Part #
MIC2800-G8SYML-TR

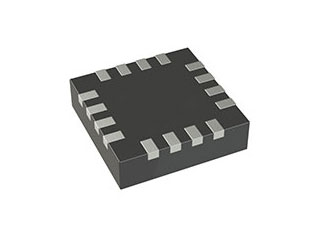

MIC2800 Series 600 mA 3 Output DC/DC Converter with LDO Post Regulator - QFN-16
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Package Style:VQFN-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Microchip MIC2800-G8SYML-TR - Product Specification
Shipping Information:
ECCN:
PCN Information:
***UPDATE OF PCN102012 & PCN111465***Description of Change: Qualification of UNIG as new assembly site for selected MIC2111xx, MIC2225, MIC2285A, MIC23150, MIC232xx, MIC2800, MIC28xx and MIC2821 device families available in various packages.Reason for Change: To improve manufacturability by qualifying UNIG as a new assembly site.Estimated First Ship Date: 16 April 2025 (date code: 2516)
*****FPCN111595 UPDATE/LOCATION CHANGE*****Description of Change:August 18, 2025: Issued final notification. Attached the Qualification Report. Provided the estimatedfirst ship date to be on October 29, 2025Fabrication Site:OLD- Microchip Technology Tempe ? Fab 2(TMGR)NEW- Microchip Technology Colorado (MCSO)Wafer SizeOLD- 8"NEW- 6"
Description of Change:Qualification of Microchip Technology Colorado ? Fab 5 (MCSO) as a new fabrication location for selected MIC18xx, MIC20xx, MIC23xx, MIC27xx, MIC28xx, MIC33xx, MIC47xx, MIC51xx, MIC53xx, MIC63xx, MIC80xx, MIC81xx, MIC82xx and MIC94xx device families available in various packages.Reason for Change:To improve manufacturability and on time delivery performance by qualifying a new fabrication location (MCSO - FAB 5), which is a Microchip-owned facility that offers significant expansion potential to better meet future client demand. *Note: The attached file called Tempe_Fab2_IATF_Decertification is for the manufacturing site deactivation of Microchip Technology Tempe ? Fab 2 (TMGR), contact your local Microchip sales office for inquiries.Change Implementation Status:In ProgressEstimated Qualification Completion Date:September 2025
Description of Change: Qualification of UNIG as new assembly site for selected MIC2111xx, MIC2225, MIC2285A, MIC23150, MIC232xx, MIC2800, MIC28xx and MIC2821 device families available in various packages.Reason for Change: To improve manufacturability by qualifying UNIG as a new assembly site.Estimated First Ship Date: 16 April 2025 (date code: 2516)Revision History: November 23, 2023: Issued initial notification.March 07, 2025: Issued final notification. Attached Qualification Report. Revised affected parts list to remove MIC2111BYMT-T5 and MIC2111CYMT-T5 catalog part numbers due to EOL. Provided Estimated First Ship Date on April 16, 2025.
Description of Change:Qualification of UNIG as a new final test site for selected MIC200x, MIC201x, MIC28xx, Y30442D and MIC300x device families available in various packages using Tube and Tape & Reel packing media.Reason for Change:To improve manufacturability and on-time delivery performance by qualifying UNIG as a new final test site.
Description of Change:Qualification of UNIG as new assembly site for selected MIC2111xx, MIC2225, MIC2285A, MIC23150, MIC232xx, MIC2800, MIC28xx and MIC2821 device families available in various packages.Reason for Change:To improve manufacturability by qualifying UNIG as a new assembly sitePre and Post Change Summary: See attached
Description of Change:Qualification of UNIG as a new final test site for selected MIC200x, MIC201x, MIC28xx, Y30442D and MIC300x device families available in various packages using Tube and Tape & Reel packing media.Reason for Change:To improve manufacturability and on-time delivery performance by qualifying UNIG as a new final test site.
Microchip has released a new Datasheet for the MIC2800 Data Sheet of devices. Notification Status: FinalDescription of Change:? Updated Section ?General Description?, Table 1-1 and Section 5.0, Packaging Information.? Added Equation 3-1 to Section 3.8 ?FB?.? Minor text and format changes throughout.Impacts to Data Sheet: NoneReason for Change: To Improve ProductivityChange Implementation Status: CompleteDate Document Changes Effective: 17 Mar 2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MIC2800-G8SYML-TR&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--regulators-reference--integrated-power-modules/mic2800-g8syml-tr-microchip-9194867
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MIC2800-G8SYML-TR&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--regulators-reference--integrated-power-modules/mic2800-g8syml-tr-microchip-9194867
Microchip MIC2800-G8SYML-TR - Technical Attributes
| Input Voltage: | 2.7V to 5.5V |
| Efficiency: | 90% |
| Line Regulation (%): | 0.2% |
| Load Regulation (%): | 0.4% |
| Frequency Range: | 1.8MHz to 2.2MHz |
| Load Capacitance: | 2.2µF |
| No of Terminals: | 16 |
| Package Style: | VQFN-16 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
5000 per Reel
Package Style:
VQFN-16
Mounting Method:
Surface Mount
