Microchip | MCP1722-3310H/S7XVAO

Manufacturer Part #

MCP1722-3310H/S7XVAO

High Voltage Dual Output LDO 3.3Vout on LDO2 with 10Vout on LDO1 SOIC 8Ld with E

ECAD Model:
Mfr. Name: Microchip
Standard Pkg:
Product Variant Information section
Date Code: 2113
Product Specification Section
Microchip MCP1722-3310H/S7XVAO - Technical Attributes
Attributes Table
Input Voltage-Min: 4.5V
Input Voltage-Max: 55V
Output Voltage Fixed: 3.3V/10V
Dropout Voltage-Max: 0.75V
Output Current-Max: 0.1A
Tolerance (%): ±2%
Operating Temp Range: -40°C to +150°C
Regulator Topology: Fixed
Quiescent Current: 50µA
No. of Outputs: Dual
Output Noise: 550µV
Load Regulation (%): 0.1%
Current - Limit: 0.23A
Line Regulation (%): 0.05%

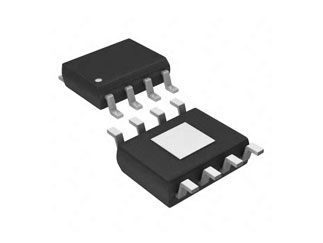

Package Style:  SOIC-8
Mounting Method: Surface Mount
Pricing Section
Global Stock:
25
USA:
25
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
6 Weeks
Minimum Order:
25
Multiple Of:
100
Total
$30.00
USD
Quantity
Unit Price
100
$1.20
300
$1.19
400
$1.18
1,000
$1.17
1,500+
$1.15
