Manufacturer Part #
59060-1-S-05-F

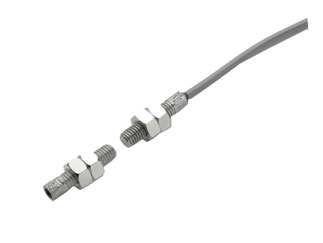

59060 Series Normally Open 0.5A 200V Stainless Steel Threaded Barrel Reed Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Box Mounting Method:Bolt On | ||||||||||
| Date Code: | |||||||||||
Littelfuse 59060-1-S-05-F - Product Specification
Shipping Information:
ECCN:
PCN Information:
Littelfuse would like to notify you of marking technology change from printing to lasering for some products from the magnetic sensors range. There will be no other changes to the form, fit and function of these sensors.For the products affected, please refer to Table 1 on following pages.The change will start from May.11th 2024 and keep running until all affected P/Ns are finished. During this period, you might receive these parts with either old or new markings.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=59060-1-S-05-F&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--sensors--proximity/59060-1-s-05-f-littelfuse-C010714847
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=59060-1-S-05-F&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--sensors--proximity/59060-1-s-05-f-littelfuse-C010714847
Littelfuse 59060-1-S-05-F - Technical Attributes
| Type: | Magnetic |
| Insulation Resistance: | 100Ω |
| Operating Temp Range: | -40°C to +105°C |
| Storage Temperature Range: | -65°C to +105°C |
| No of Terminals: | 2 |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Bolt On |
Available Packaging
Package Qty:
100 per Box
Mounting Method:
Bolt On
