STMicroelectronics | 1N5822RL

Manufacturer Part #

1N5822RL

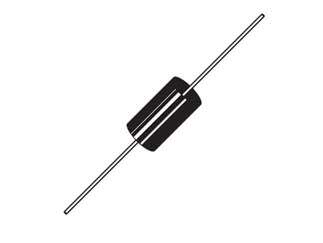

Power Schottky Rectifier DO-201A

ECAD Model:
Mfr. Name: STMicroelectronics
Standard Pkg:
Product Variant Information section
Date Code: 2535
Product Specification Section
STMicroelectronics 1N5822RL - Technical Attributes
Attributes Table
Average Rectified Current-Max: 3A
Reverse Voltage-Max [Vrrm]: 40V
Reverse Current-Max: 2mA
Forward Voltage: 525mV
Configuration: Single
Thermal Resistance: 80°C/W
Operating Temp Range: -65°C to +150°C
Storage Temperature Range: -65°C to +150°C
Package Style:  DO-201AD
Mounting Method: Through Hole
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
-1
Factory Lead Time:
15 Weeks
Minimum Order:
9500
Multiple Of:
1900
Total
$804.65
USD
Quantity
Unit Price
1,900
$0.0883
3,800
$0.0867
5,700
$0.0858
9,500
$0.0847
19,000+
$0.0824
