Manufacturer Part #
ZM4744A-GS18

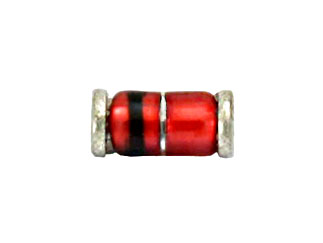

ZM4744 Series 15 V 1 W ±5% 14 Ohms Surface Mount Zener Diode - DO-213AB
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Vishay | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Package Style:DO-213AB Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Vishay ZM4744A-GS18 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=ZM4744A-GS18&field4=Vishay&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--diodes--zener/zm4744a-gs18-vishay-6138383
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=ZM4744A-GS18&field4=Vishay&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--diodes--zener/zm4744a-gs18-vishay-6138383
Vishay ZM4744A-GS18 - Technical Attributes
Attributes Table
| Power Dissipation: | 1W |
| Reverse Current-Max: | 5µA |
| Voltage Tolerance: | 5% |
| Impedance: | 14Ω |
| Zener Current: | 61mA |
| Configuration: | Single |
| Working Voltage-Nom: | 15V |
| No of Terminals: | 2 |
| Package Style: | DO-213AB |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
5,000
$0.0698
10,000
$0.0687
15,000
$0.068
20,000
$0.0675
25,000+
$0.066
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
Package Style:
DO-213AB
Mounting Method:
Surface Mount
