APT50GN60BDQ2G

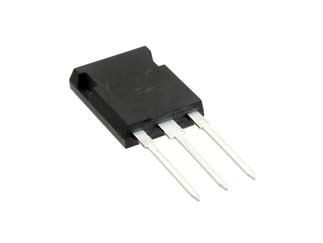

APT50GN60Bx Series 600 V 107 A Trench and Field Stop IGBT - TO-247-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:30 per Tube Package Style:TO-247-3 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Microchip APT50GN60BDQ2G - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change: Qualification of Tin (Sn) as a new terminal plating for selected APL502, APL602, APT100, APT10M, APT11N, APT120, APT13G, APT150, APT15D, APT15G, APT200, APT20G, APT20M, APT25G, APT30D, APT30G, APT30M, APT30S, APT33G, APT35G, APT401, APT40D, APT40G, APT40M, APT45G, APT47N, APT501, APT502, APT50G, APT50M, APT601, APT602, APT603, APT60D, APT60M, APT60S, APT65G, APT75G, APT801, APT802, APT803, APT804, APT805, APT806, APT807, APT80G, APT94N, CC1105, CC1215, CC2515, CC3037, CC3038, CC3069 and CC3125 Microsemi Power Discrete TO-247 products.Reason for Change: To improve productivity by a change in terminal platingEstimated First Ship Date: 02 January 2026 (date code: 2601)
PCN Status:Final NotificationDescription of Change:Qualification of MG15F-35AB and MG15F-0140B as a new mold compound material for various products available in TO-264, SOT-227 and TO-247 packages at FSTS assembly site.Reason for Change:To improve productivity by qualifying MG15F-35AB and MG15F-0140B as a new mold compound.Change Implementation Status:In ProgressEstimated First Ship Date:June 29, 2024 (date code: 2426)
PCN Status:Initial NotificationDescription of Change:Qualification of MG15F-35AB and MG15F-0140B as a new mold compound material for various products available in TO-264, SOT-227 and TO-247 packages at FSTS assembly site.Reason for Change:To improve productivity by qualifying MG15F-35AB and MG15F-0140B as a new mold compound material at FSTS assembly site.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APT50GN60BDQ2G&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/apt50gn60bdq2g-microchip-3034613
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APT50GN60BDQ2G&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/apt50gn60bdq2g-microchip-3034613
Microchip APT50GN60BDQ2G - Technical Attributes
| CE Voltage-Max: | 600V |
| Collector Current @ 25C: | 107A |
| Power Dissipation-Tot: | 366W |
| Gate - Emitter Voltage: | 30V |
| Pulsed Collector Current: | 150A |
| Turn-on Delay Time: | 20ns |
| Turn-off Delay Time: | 230ns |
| Qg Gate Charge: | 325nC |
| Reverse Recovery Time-Max: | 25ns |
| Leakage Current: | 600nA |
| Input Capacitance: | 3200pF |
| Thermal Resistance: | 0.41°C/W |
| Operating Temp Range: | -55°C to +175°C |
| No of Terminals: | 3 |
| Package Style: | TO-247-3 |
| Mounting Method: | Through Hole |
