Manufacturer Part #
APTGT50DH120TG

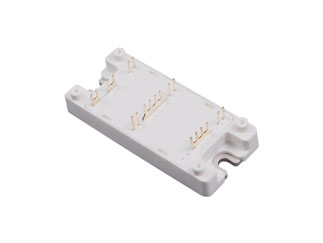

APTGT50x Series 1200 V 75 A Fast Trench + Field Stop IGBT Power Module - SP4
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Tube Package Style:SP-4 Mounting Method:Chassis Mount | ||||||||||
| Date Code: | |||||||||||
Microchip APTGT50DH120TG - Product Specification
Shipping Information:
ECCN:
PCN Information:
Revision History:January 17, 2023: Issued initial notification.August 08, 2023: Issued final notification. Attached the Qualification Report. Added CPN APTGT300A60TG on the affected parts list. Provided estimated first ship date to be on August 29, 2023.Description of Change:Qualification of MP3B as a new assembly site for selected Microsemi products available in SP4 package.Pre and Post Change Summary: See attachedImpacts to Data Sheet:NoneChange ImpactNoneReason for Change:To improve manufacturability by qualifying MP3B as a new assembly site.Change Implementation Status:In ProgressEstimated First Ship Date:August 29, 2023 (date code: 2335)Note: Please be advised that after the estimated first ship date customers may receive pre and post change parts.Time Table Summary: See attached
Description of Change:Qualification of MP3B as a new assembly site for selected Microsemi products available in SP4 package.Reason for Change:To improve manufacturability by qualifying MP3B as a new assembly site.Change Implementation Status:In ProgressEstimated Qualification Completion Date:May 2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APTGT50DH120TG&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/aptgt50dh120tg-microchip-4034604
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APTGT50DH120TG&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/aptgt50dh120tg-microchip-4034604
Microchip APTGT50DH120TG - Technical Attributes
| CE Voltage-Max: | 1200V |
| Collector Current @ 25C: | 75A |
| Power Dissipation-Tot: | 277W |
| Gate - Emitter Voltage: | ±20V |
| Pulsed Collector Current: | 100A |
| Collector - Emitter Saturation Voltage: | 1.7V |
| Turn-on Delay Time: | 90ns |
| Turn-off Delay Time: | 420ns |
| Reverse Recovery Time-Max: | 150ns |
| Leakage Current: | 250µA |
| Input Capacitance: | 3600pF |
| Thermal Resistance: | 0.45°C/W |
| Operating Temp Range: | -40°C to +150°C |
| Package Style: | SP-4 |
| Mounting Method: | Chassis Mount |
Available Packaging
Package Qty:
1 per Tube
Package Style:
SP-4
Mounting Method:
Chassis Mount
