Manufacturer Part #
FF600R12ME4BOSA1

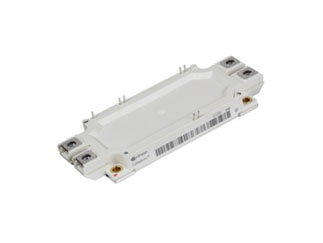

FF600R12ME4 Series 1200 V 995 A 4050 W Chassis Mount EconoDUAL™ IGBT Module
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10 per Tray Package Style:Module Mounting Method:Chassis Mount | ||||||||||
| Date Code: | |||||||||||
Infineon FF600R12ME4BOSA1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Detailed change information:Subject :Reduction of clearance and creepage distances of 650 V and 1200 V EconoDUAL™ 3 modules Reason :To enable our customers to comply with the latest revision of the IEC 60664-1 standard, requiring a calculation based on minimum tolerances, we have checked and adjusted our specifications for clearance and creepage distances for the module. These adjustments now additionally take production tolerances into account to ensure even more accurate information in our datasheets. After a thorough review of our module, we have realized that the previous values in our datasheets needed to be changed as they did not provide correct nominal values. The updated values can be found below.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FF600R12ME4BOSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/ff600r12me4bosa1-infineon-3090295
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FF600R12ME4BOSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/ff600r12me4bosa1-infineon-3090295
Infineon FF600R12ME4BOSA1 - Technical Attributes
| CE Voltage-Max: | 1200V |
| Collector Current @ 25C: | 995A |
| Power Dissipation-Tot: | 4050W |
| Gate - Emitter Voltage: | 20V |
| Pulsed Collector Current: | 1200A |
| Collector - Emitter Saturation Voltage: | 1.75V |
| Turn-on Delay Time: | 0.16µs |
| Turn-off Delay Time: | 0.48µs |
| Qg Gate Charge: | 4400nC |
| Leakage Current: | 400nA |
| Input Capacitance: | 37nF |
| Operating Temp Range: | -40°C to +150°C |
| No of Terminals: | 11 |
| Package Style: | Module |
| Mounting Method: | Chassis Mount |
Available Packaging
Package Qty:
10 per Tray
Package Style:
Module
Mounting Method:
Chassis Mount
