Manufacturer Part #

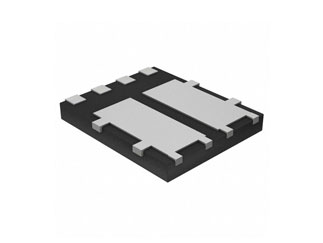

DMTH4014LPD-13
MOSFET BVDSS: 31V~40V PowerDI5060-8 T&R 2.5K
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Std. Mfr. Pkg Package Style:POWERDI5060-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated DMTH4014LPD-13 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Diodes Incorporated DMTH4014LPD-13 - Technical Attributes
Attributes Table
| Fet Type: | Dual N-Ch |
| No of Channels: | 2 |
| Drain-to-Source Voltage [Vdss]: | 40V |
| Drain-Source On Resistance-Max: | 15mΩ |
| Rated Power Dissipation: | 2.41W |
| Qg Gate Charge: | 10.2nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 10.6A |
| Turn-on Delay Time: | 3.5ns |
| Turn-off Delay Time: | 8.7ns |
| Rise Time: | 5.7ns |
| Fall Time: | 1.8ns |
| Operating Temp Range: | -55°C to +175°C |
| Gate Source Threshold: | 1.3V |
| Input Capacitance: | 733pF |
| Package Style: | POWERDI5060-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
2,500
$0.327
5,000
$0.323
7,500
$0.321
10,000
$0.319
12,500+
$0.314
Product Variant Information section
Available Packaging
Package Qty:
2500 per Std. Mfr. Pkg
Package Style:
POWERDI5060-8
Mounting Method:
Surface Mount
