onsemi | NVMFD5C466NLT1G

Manufacturer Part #

NVMFD5C466NLT1G

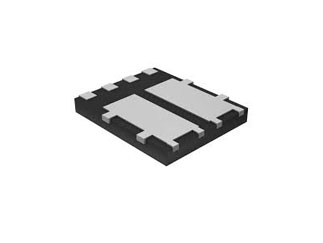

Dual N-Channel 40 V 52 A 7.4 mOhm Surface Mount Power MOSFET - DFN-8

ECAD Model:
Mfr. Name: onsemi
Standard Pkg:
Product Variant Information section
Date Code: 2444
Product Specification Section
onsemi NVMFD5C466NLT1G - Technical Attributes
Attributes Table
Product Status: Active
Fet Type: N-Ch
No of Channels: 2
Drain-to-Source Voltage [Vdss]: 40V
Drain-Source On Resistance-Max: 5.4mΩ
Rated Power Dissipation: 3.2 W to 50W
Qg Gate Charge: 16nC
Gate-Source Voltage-Max [Vgss]: 20V
Drain Current: 17.6 A/ 70A
Turn-on Delay Time: 12ns
Turn-off Delay Time: 26ns
Rise Time: 30ns
Fall Time: 10ns
Operating Temp Range: -55°C to +175°C
Gate Source Threshold: 3.5V
Input Capacitance: 1020pF
Package Style:  DFN-8
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
30 Weeks
Minimum Order:
1500
Multiple Of:
1500
Total
$1,440.00
USD
Quantity
Unit Price
1,500
$0.96
3,000
$0.945
4,500
$0.94
6,000
$0.935
7,500+
$0.92
