Manufacturer Part #
RV1C001ZPT2L

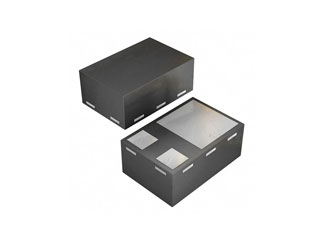

-20V 100mA 3.8 Ohm P-ch DFN0806-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ROHM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:8000 per Reel Package Style:DFN-3 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2530 | ||||||||||
Product Specification Section
ROHM RV1C001ZPT2L - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RV1C001ZPT2L&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/rv1c001zpt2l-rohm-8092149
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RV1C001ZPT2L&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/rv1c001zpt2l-rohm-8092149
ROHM RV1C001ZPT2L - Technical Attributes
Attributes Table
| Product Status: | Not Recommended for New Designs |
| Fet Type: | P-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 20V |
| Drain-Source On Resistance-Max: | 3.8Ω |
| Rated Power Dissipation: | 100mW |
| Gate-Source Voltage-Max [Vgss]: | 10V |
| Drain Current: | 100mA |
| Turn-on Delay Time: | 46ns |
| Turn-off Delay Time: | 325ns |
| Rise Time: | 62ns |
| Fall Time: | 137ns |
| Gate Source Threshold: | 1V |
| Input Capacitance: | 15pF |
| Package Style: | DFN-3 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
8,000
$0.0444
24,000
$0.0434
32,000
$0.0431
80,000
$0.0423
120,000+
$0.0415
Product Variant Information section
Available Packaging
Package Qty:
8000 per Reel
Package Style:
DFN-3
Mounting Method:
Surface Mount
