Manufacturer Part #

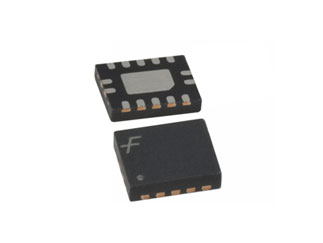

74LCX126BQX
74LCX Series 3.6 V Surface Mount Quad Non Inverting Buffer - DQFN-14
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:DQFN-14 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi 74LCX126BQX - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=74LCX126BQX&field4=onsemi&field18=https://p1emea.futureelectronics.com/p/semiconductors--logic--74-series--vcx-lcx/74lcx126bqx-onsemi-1057148
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=74LCX126BQX&field4=onsemi&field18=https://p1emea.futureelectronics.com/p/semiconductors--logic--74-series--vcx-lcx/74lcx126bqx-onsemi-1057148
onsemi 74LCX126BQX - Technical Attributes
Attributes Table
| Logic Circuit: | Buffer |
| Family: | VCX/LCX |
| No of Functions / Channels: | 4 |
| Output Characteristics: | 3-ST |
| Supply Voltage-Nom: | 2V to 3.6V |
| Supply Current: | ±100mA |
| Propagation Delay: | 6.6ns |
| Operating Temperature: | -40°C to +85°C |
| Capacitance: | 25pF |
| No of Inputs: | 4 |
| No of Outputs: | Quad |
| High Level Output Current: | -24mA |
| Low Level Output Current: | 24mA |
| No of Pins: | 14 |
| Quiescent Current: | 10µA |
| Moisture Sensitivity Level: | 1 |
| Package Style: | DQFN-14 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
3,000
$0.188
6,000
$0.185
9,000+
$0.183
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
DQFN-14
Mounting Method:
Surface Mount
