Référence fabricant

MC9S12E128CPVE

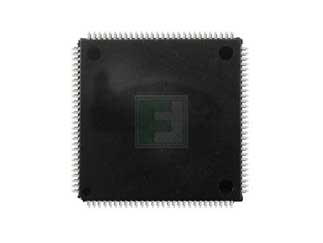

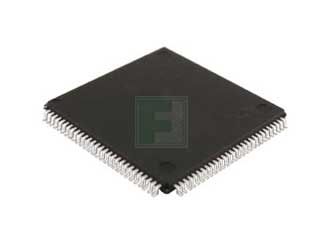

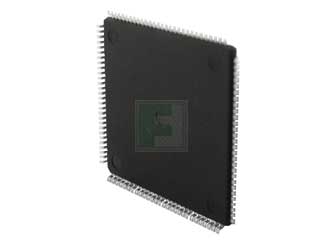

S12E 16-bit MCU, HCS12 core, 128KB Flash, 50MHz, LQFP 112

Modèle ECAD:
Nom du fabricant: NXP
Emballage standard:
Product Variant Information section
Code de date:
Product Specification Section
NXP MC9S12E128CPVE - Caractéristiques techniques
Attributes Table
Operating Temperature: -40°C to +85°C
Fonctionnalités et applications

The MC9S12E128CPVE is a 16 bit Microcontroller. It comes in an 112 Pin, LQFP package. It  has 91 I/O pins, 25 MHz and 128 KB Flash.

The MC9S12E-Family is a 112/80 pin low cost general purpose MCU family. All members of the MC9S12E-Family are comprised of standard on-chip peripherals including a 16-bit central processing unit (HCS12 CPU), up to 256 Kbytes of Flash EEPROM, up to 16 Kbytes of RAM.

The MC9S12E-Family has full 16-bit data paths throughout. The inclusion of a PLL circuit allows power consumption and performance to be adjusted to suit operational requirements. In addition to the I/O ports available on each module, 16 dedicated I/O port bits are available with Wake-Up capability from STOP or WAIT mode.

Features:

  • HCS12 CPU
    • Upward compatible with M68HC11 instruction set
    • Interrupt stacking and programmer's model identical to M68HC11
    • Instruction queue
    • Enhanced indexed addressing
  • Module Mapping Control (MMC)
  • Interrupt Control (INT)
  • Background Debug Module (BDM)
  • Debugger (DBG12) including breakpoints and change-of-flow trace buffer
  • Multiplexed External Bus Interface (MEBI)
  • Wake-Up interrupt inputs
    • Up to 16 port bits available for wake up interrupt function with digital filtering

View the MC9S12E family of 16 Bit Microcontrollers

Voir plus...
Pricing Section
Stock global :
0
États-Unis:
0
Sur commande :
0
Stock d'usine :Stock d'usine :
0
Délai d'usine :
13 Semaines
Commande minimale :
300
Multiples de :
300
Total
5 073,00 $
USD
Quantité
Prix unitaire
300+
$16.91
