Manufacturer Part #
R5F5630DCDFC#V0

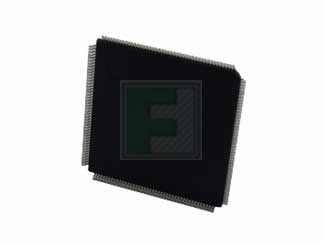

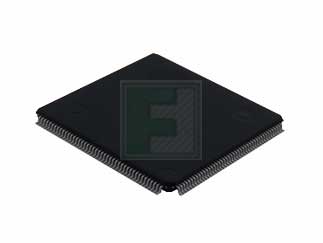

RX600 Series 32 kB Flash 128 kB RAM SMT 32-Bit Microcontroller - LQFP-176
| | |||||||||||
| Mfr. Name: | Renesas | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:40 per Tray Package Style:LQFP-176 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 1949 | ||||||||||
Product Specification
Shipping Information:
ECCN:
PCN Information:
This notification announces a standardization of JEDEC trays and carrier tapes. The following is a list of the changes. 1. Change in the specification for the carrier tape.2. Unification of the model of the JEDEC tray.3. Unification of the storing order of IC in the JEDEC tray.4. Unification of numbers of strapping band for JEDEC trays.
Product Lifecycle:
-
ROHS Compliant -
Lead Free
Technical Attributes
| Family Name: | RX630 |
| Core Processor: | RX |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 32kB |
| RAM Size: | 128kB |
| Speed: | 100MHz |
| No of I/O Lines: | 148 |
| InterfaceType / Connectivity: | CAN/I2C/SCI/SPI/USB |
| Peripherals: | CAN/I2C/On-Chip-ADC/On-Chip-DAC/SCI/SPI/USB/Watchdog |
| Number Of Timers: | 20 |
| Supply Voltage: | 2.7V to 3.6V |
| Operating Temperature: | -40°C to +85°C |
| On-Chip ADC: | 21-chx12-bit |
| On-Chip DAC: | 2-chx10-bit |
| Watchdog Timers: | 1 |
| Package Style: | LQFP-176 |
| Mounting Method: | Surface Mount |
Features & Applications
The R5F5630DCDFC#V0 is a part of RX600 series 32 Bit 128K Flash Rom Microcontroller 100 Pin LQFP Package. It has an operating temperature range of -40 °C to +85 °C and it comes in LQFP-176 Package.
Features:
- 32-bit RX CPU core
- Low-power design and architecture
- On-chip main flash memory, no wait states
- On-chip data flash memory
- On-chip SRAM, no wait states
- Reset and supply management
- Up to 22 communications interfaces
- External address space
- Up to 20 extended-function timers
- A/D converter for 1-MHz Operation
Available Packaging
Package Qty:
40 per Tray
Package Style:
LQFP-176
Mounting Method:
Surface Mount
