Manufacturer Part #
SSI-LXR4815ID-150

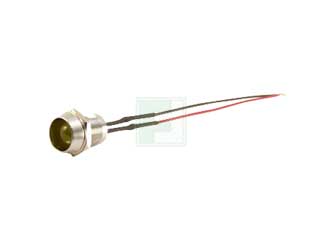

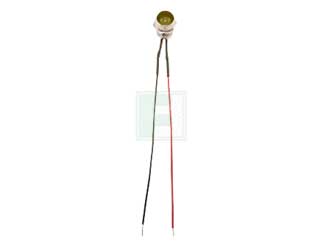

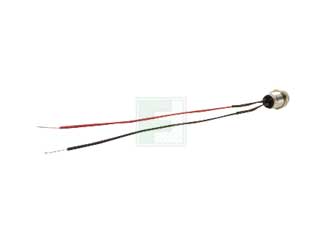

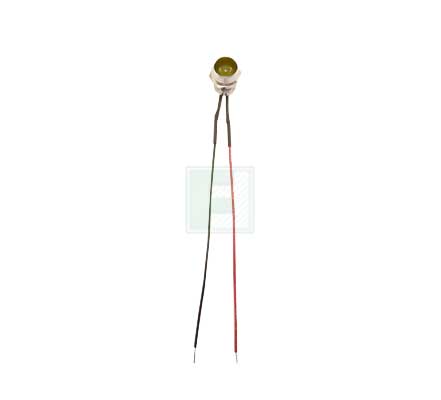

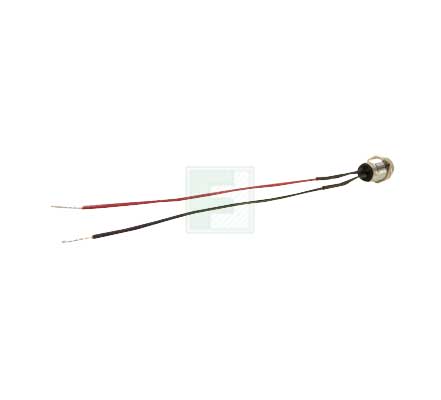

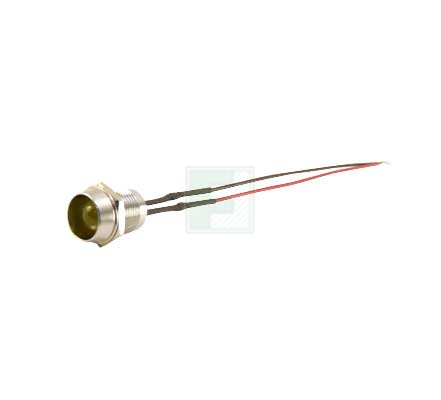

Red 5 mm 60° Diffused 40 mcd 2 V LED Panel Indicator
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Lumex | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Std. Mfr. Pkg Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Lumex SSI-LXR4815ID-150 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SSI-LXR4815ID-150&field4=Lumex&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ssi-lxr4815id-150-lumex-C010789140
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SSI-LXR4815ID-150&field4=Lumex&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ssi-lxr4815id-150-lumex-C010789140
Lumex SSI-LXR4815ID-150 - Technical Attributes
Attributes Table
| No of LEDs: | 1 |
| Color: | Red |
| Lens Type: | Diffused |
| Forward Voltage: | 2V |
| Forward (Drive) Current: | 20mA |
| Intensity: | 40mcd |
| Viewing Angle: | 60° |
| Wavelength: | 635nm |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -40°C to +85°C |
| Dimension: | H 15mm x D 5mm |
| Mounting Method: | Panel Mount |
Features & Applications
The SSI-LXR4815ID-150 is a 2 V 5 mm 60° Red Diffused 30 mcd LED Panel Mount Indicator QuasarBrite LEDs.
Features:
- Choice of Colors and Lens Finishes
- Bi-Color Styles Optional
- Insulated Lead Lenghts Optional
- Easy installation through panel
- State-of-the-Art, LED Technology
Parameters:
- Peak Forward current: 150 mA
- Steady Current : 30 mA
- Power Dissipation : 105 mW
- Derate from 25°C : -1.2 mW/°C
- Operating temperature : -40 to + 85°C
- Peak wave length : 635 nm
- Forward voltage : 2.0 to 2.5 V
- Reverse Voltage : 5.0 V
- Emitted color :Green
- Epoxy Lens Finish : Green Diffused
Applications:
- Alarm/Warning Indicators
- Front Panel Circuit Fault Indicators
- Instrument Control Panels
- Medical Diagnostics Indicators
- Industrial Automation Control Panels
- Front Panel Status Indicators
