Manufacturer Part #
TLHR4405

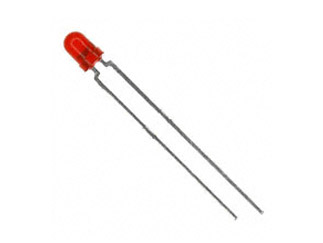

Red 3 mm Min 6.3 mcd Typ 15 mcd 60 ° Tinted Through Hole LED T-1
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Vishay | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag Package Style:T-1 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Vishay TLHR4405 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TLHR4405&field4=Vishay&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/tlhr4405-vishay-6296628
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TLHR4405&field4=Vishay&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/tlhr4405-vishay-6296628
Vishay TLHR4405 - Technical Attributes
Attributes Table
| No of LEDs: | 1 |
| Color: | Red |
| Lens Type: | Tinted / Diffused |
| Forward Voltage: | 2V |
| Forward (Drive) Current: | 10mA |
| Intensity: | 15mcd |
| Viewing Angle: | 60° |
| Wavelength: | 635nm |
| Rated Power: | 100mW |
| Operating Temp Range: | -40°C to +100°C |
| Storage Temperature Range: | -55°C to +100°C |
| Dimension: | H 4.4mm x D 3.2mm |
| Package Style: | T-1 |
| Mounting Method: | Through Hole |
Features & Applications
The TLHR4405 is a High Efficiency Red tinted diffused LED with 10 mcd intensity and wide viewing angle of 60°, designed to meet the increasing demand for AlInGaP technology.
Features:
- Standard Ø 3 mm (T-1) package
- Small mechanical tolerances
- Suitable for DC and high peak current
- Wide viewing angle
- Luminous intensity categorized
- Yellow and green color categorized
Applications:
- Status lights
- Off/on indicator
- Background illumination
- Readout lights
- Maintenance lights
- Legend light
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
1
$0.122
200
$0.12
500
$0.117
1,250
$0.115
3,000+
$0.111
Product Variant Information section
Available Packaging
Package Qty:
1000 per Bag
Package Style:
T-1
Mounting Method:
Through Hole
