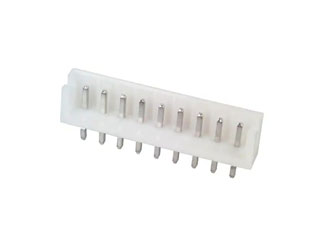

JST | B9B-EH-A(LF)(SN)

Manufacturer Part #

B9B-EH-A(LF)(SN)

9 Position 2.5mm Top-Entry Shrouded Header

ECAD Model:
Mfr. Name: JST
Standard Pkg:
Product Variant Information section
Date Code: 2248
Product Specification Section
JST B9B-EH-A(LF)(SN) - Technical Attributes
Attributes Table
No of Positions: 9
Pitch: 2.5 mm
Style/Orientation: Straight Header/Plug
Termination: Crimp
Type: Shrouded Header
Mounting Method: Through Hole
Features & Applications

EH Shrouded Headers from JST are the thinnest 2.5 mm (.098”) pitch connectors. With a height of 8.1MM(.319”) after mounting and 3.8mm (.150”)in width this disconnectable crimp style connector is designed for high density connection. This compact, highly reliable connector is perfect for internal wire designs for the printed circuit board applications.

B9B-EH-A/LF/SN is a 9 position top entry Shrouded Header. This  particular Shrouded header comes in white. The shrouded Header is interchangeable with those of the HR crimp style and insulation displacement connectors.

Pricing Section
Global Stock:
0
USA:
0
On Order:Order inventroy details
291
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
1
Multiple Of:
1
Total
$0.16
USD
Quantity
Unit Price
1
$0.162
200
$0.158
500
$0.155
2,000
$0.152
5,000+
$0.145
