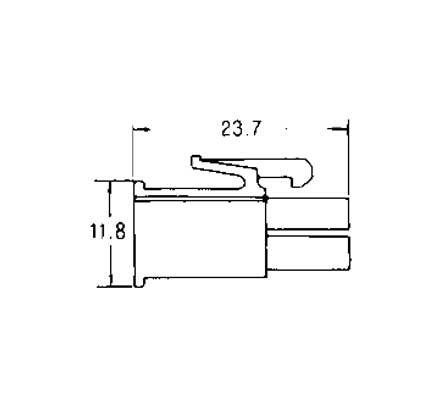

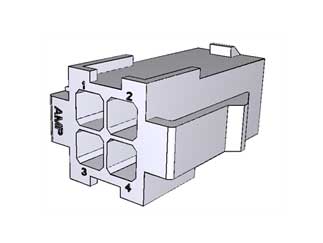

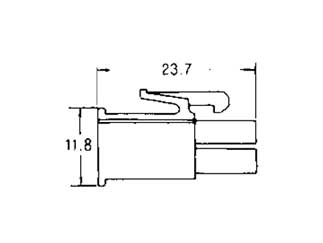

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

172338-1

MATE-N-LOK 4 Position 2 Row 4.14 mm Free Hanging Plug Connector Housing

172338-1 Datasheet 172338-1 Documentation Schematic
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 7000 per Bag
Date Code:	2151

TE Connectivity 172338-1 - Technical Attributes

No of Positions:	4
No of Rows:	2
Contact Termination:	Male/Pin Crimp
Pitch:	4.14 mm
Style/Orientation:	Free Hanging Plug
Termination:	Crimp
Operating Temp Range:	-20°C to +105°C
Voltage Rating:	600V
Current Rating:	9.5A
Contact Plating:	Tin
Material:	Nylon
Gender:	Female
Type:	Plug
Mating Type:	Positive Lock
Color:	Natural
Insulation Resistance:	1000MΩ

Expand List

Collapse List

Features & Applications

Tyco Electronics Soft Shell Pin & Socket Connectors (Mate-N-Lok Series) is one of the most popular plastic connectors in use today.

Soft Shell Pin & Socket Connectors provide a highly economic and reliable way of grouping multiple-lead connections in today’s marketplace. The Soft Shell series is both compact and highly durable where operating temperatures might vary from –40C to -105C

Available in panel or free-hanging configurations, the Soft Shell Pin & Socket family offers interconect solutions for wire-to-wire and wire-to-board pin and receptacle connector applications.

Mini Universal Mate-N-Lok is a wire-to-wire and wire-to-board connector system that is fully polarized to provide proper plug-to-cap mating that incorporates a positive locking mechanism. Available in both free hanging and panel mount with contacts that accept wire size range 30-16 AWG.

172338-1 is a Softshell Free Hanging Plug Housing with 4 (plug/male) contact positions single row housed in a plastic body

The 172338-1 comes without contacts. See Accessories for Contact options.

Mating options can also be found in the Related Products Tab
