Name: TE Connectivity 3-640311-1
Brand: TE Connectivity
SKU: 1255173
Price: 0.051 USD
Availability: InStock

text.skipToContent text.skipToNavigation

- Region & Currency
- Americas
  - Other Currencies
  - CAD ($)
  - USD ($)
- Asia Pacific
  - Other Currencies
  - AUD ($)
  - CNY (¥)
  - HKD ($)
  - NZD ($)
  - SGD ($)
  - USD ($)
- Europe, Middle East, Africa
  - Other Currencies
  - CHF (CHF)
  - CZK (Kč)
  - DKK (kr)
  - USD ($)
You are changing the region you shop from. This may affect price, shipping options and product availability. Items in your current Cart will not be transferred.

You are changing currency. This may affect price, shipping options and product availability. Items in your current Cart will not be transferred.
1 (800) 675-1619

Orders shipping outside of United States will be on hold while the company evaluates tariff impacts.
Please contact your salesperson for assistance.

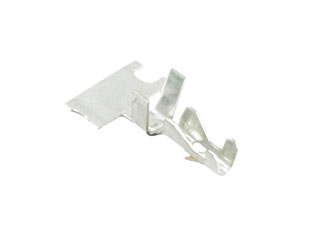

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

3-640311-1

Miniature Amp In 22-18 AWG Phosphor Bronze Terminal

3-640311-1 Datasheet 3-640311-1 Documentation Product Specification Application Note 3D View
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 8000 per Reel Mounting Method: Stud Mount
Date Code:	2502

TE Connectivity 3-640311-1 - Technical Attributes

Type:	Contact
Contact Termination:	PCB
No of Positions:	1
Wire Gauge:	AWG 22-18
Contact Material:	Pre-Tin
Mounting Method:	Stud Mount

Features & Applications

The 3-640311-1 is a Miniature Amp In 22-18 AWG Phosphor Bronze Terminal.

The miniature AMP-IN Terminal is designed not as an electrical terminal but as a mechanical holding device to enhance soldering of hookup wires to printed circuit boards. The combination of terminal and application tooling eliminates costly manual preparation of wires prior to soldering, and positions the wire to achieve reliable solder joints. Movement of the wire during soldering is restricted, providing for proper solder flow.

Features:

Product Type = Terminal
Terminal Configuration = Miniature
PCB Hole Diameter (mm [in]) = 1.85 [0.073]
Insulation Diameter (mm [in]) = 1.52-2.79 [.060-.110]
Material = Phosphor Bronze
Proprietary Name = Mini AMP-IN
Plating Material = Pre-Tin
PCB Thickness, Recommended (mm [in]) = 1.57 [0.062]
RoHS/ELV Compliance = RoHS compliant, ELV compliant
