Manufacturer Part #
7017X1

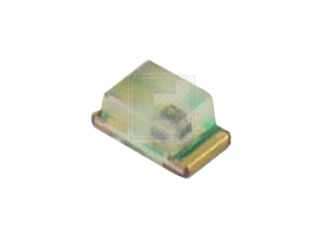

7017X Series Red 0603 70º 11.7 mcd Diffused 1.7 V Surface Mount LED
| | |||||||||||
| | |||||||||||
| Mfr. Name: | VCC | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2540 | ||||||||||
VCC 7017X1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Title of Change: Electrical Spec update for 7017X1 LEDDescription and Reason for Change:Test current from 20mA to 5mA. Fwd voltage typ. From 1.7V to 1.9V. Fwd voltage max from 2.3V to 2.1V. Luminous intensity from 7-11mcds to 10-64mcds (24mcd typ). Peak wavelength from 660nm to 635nm. Power dissipation from 57.5mW to 81mW. Operating temperature from (?30 to +85C) to (-40 to +85C). Peak fwd current from 60mA to 100mA. Reverse voltage from 4V to 5V.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=7017X1&field4=VCC&field18=https://p1na.futureelectronics.com/p/3927324
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=7017X1&field4=VCC&field18=https://p1na.futureelectronics.com/p/3927324
VCC 7017X1 - Technical Attributes
| No of LEDs: | 1 |
| Color: | Red |
| Lens Type: | Diffused |
| Forward Voltage: | 1.7V |
| Forward (Drive) Current: | 20mA |
| Intensity: | 11.7mcd |
| Viewing Angle: | 70° |
| Wavelength: | 660nm |
| Rated Power: | 57.5mW |
| Operating Temp Range: | -30°C to +85°C |
| Storage Temperature Range: | -40°C to +100°C |
| Dimension (Inch): | H 0.028in x L 0.063in x W 0.031in |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
4000 per Reel
Mounting Method:
Surface Mount
