Manufacturer Part #
V47ZA1P

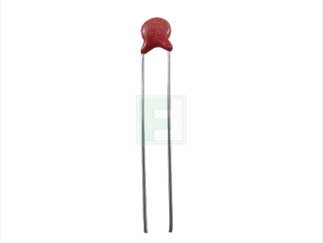

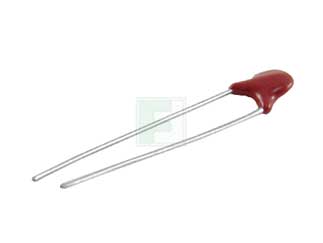

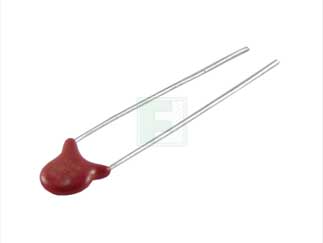

ZA Series 38 VDC 30 V RMS 93 V Clamp 250 A 800 pF Radial Lead Varistor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Box Package Style:RADIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | 2509 | ||||||||||
Product Specification Section
Littelfuse V47ZA1P - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V47ZA1P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/4689444
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V47ZA1P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/4689444
Littelfuse V47ZA1P - Technical Attributes
Attributes Table
| Capacitance: | 1245pF |
| Clamping Voltage-Max: | 93V |
| Peak Output Current: | 250A |
| Rated Voltage: | 5.5|615V |
| RMS Voltage-Max: | 30V |
| Varistor Voltage Range: | 42.3V to 51.7V |
| Current Rating: | 1mA |
| Energy: | 1.8J |
| Insulation Resistance: | 1000MΩ |
| Operating Temp Range: | -55°C to +85°C |
| Storage Temperature Range: | -55°C to +125°C |
| No of Terminals: | 2 |
| Diameter: | 7mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
335
USA:
335
Factory Lead Time:
13 Weeks
Quantity
Unit Price
1
$0.0694
400
$0.0676
1,500
$0.0655
5,000
$0.0637
20,000+
$0.0598
Product Variant Information section
Available Packaging
Package Qty:
1500 per Box
Package Style:
RADIAL
Mounting Method:
Through Hole
