Manufacturer Part #
640250-7

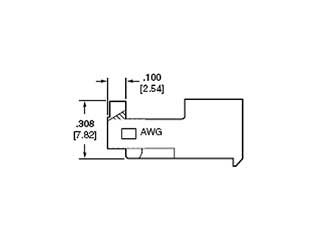

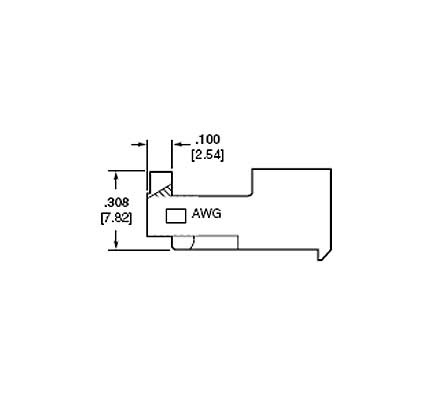

SL-156 7 Position Crimp Locking Ramp Free Hanging Receptacle Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | 1523 | ||||||||||
TE Connectivity 640250-7 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=640250-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5854781
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=640250-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5854781
TE Connectivity 640250-7 - Technical Attributes
| No of Positions: | 7 |
| No of Rows: | 1 |
| Contact Termination: | Female/Socket Crimp |
| Pitch: | 3.96 mm |
| Style/Orientation: | Free Hanging Receptacle |
| Termination: | Crimp |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 250V |
| Current Rating: | 6.5A |
| Material: | Nylon |
| Gender: | Female |
| Type: | Receptacle |
| Mating Type: | Locking Ramp |
| Color: | Natural |
Features & Applications
The AMP SL-156 connectors are designed to mate with .045 [1.14] square or round post headers or staked posts on .156 [3.96] centers.
The wire-to-board connector is a two-piece connector system with the wire crimped to the contact, then inserted into the housing. This product mates with the MTA-156 flat, polarized and friction lock header, or staked posts (not MTA-156 shrouded headers).
Product Facts:
- Rugged wire-to-board interconnection to mate with .045 square or round post headers or staked posts on .156 centers
- Standard Connectors accept wire range of 18–24 AWG [0.9–0.2 mm] and LID Connectors accept wire range of 18–24 AWG [0.9–0.2 mm] and a limited 16 AWG [1.29–1.42 mm] (2550–2800 CMA)
- Two-piece interconnection system (connector/header)
- Housing made of flame retardant nylon
- Available in 1- through 24-position connector configurations
- Connectors are end-to-end stackable
- Wire-to-board system offers polarization with friction lock for positive mating
The 640250-7 Wire to Board SL-156 Housing is a 7 position receptacle designed for crimp contacts.
See Related Product for mating options and Accessories for contacts.
See page 58 of the datasheet in the download center for complete technical details.
