Manufacturer Part #
DMN2400UFDQ-7

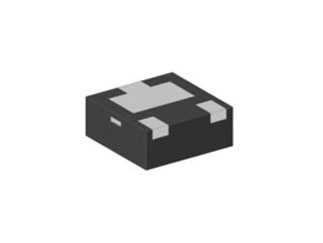

DMN24xx Series 20 V 900 mA N-Channel Enhancement Mode Mosfet - DFN1212-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:UDFN-3 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated DMN2400UFDQ-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Diodes Incorporated DMN2400UFDQ-7 - Technical Attributes
Attributes Table
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 20V |
| Drain-Source On Resistance-Max: | 0.6Ω |
| Rated Power Dissipation: | 0.44W |
| Qg Gate Charge: | 0.5nC |
| Gate-Source Voltage-Max [Vgss]: | 12V |
| Drain Current: | 0.9A |
| Turn-on Delay Time: | 4.06ns |
| Turn-off Delay Time: | 13.74ns |
| Rise Time: | 7.28ns |
| Fall Time: | 10.54ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 1V |
| Input Capacitance: | 37pF |
| Package Style: | UDFN-3 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
32 Weeks
Quantity
Unit Price
3,000
$0.0742
9,000
$0.0723
12,000
$0.0718
30,000
$0.0703
45,000+
$0.0688
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
UDFN-3
Mounting Method:
Surface Mount
