Manufacturer Part #

NMR100C

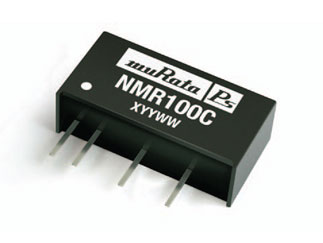

NMR Series 1 W Single Output 5 V Isolated Through Hole DC/DC Converter

NMR100C Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Murata Power Solutions
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 25 per Tube Mounting Method: Through Hole
Date Code:

Murata Power Solutions NMR100C - Technical Attributes

Type:	Encapsulated
Isolation:	Isolated
No of Outputs:	Single
Output Power:	1W
Output Voltage:	5V
Input Voltage:	5V
Operating Temp Range:	-40°C to +85°C
Efficiency:	69%
Power Dissipation:	1W
Load Regulation (%):	14%
Output Current:	200mA
Switching Frequency-Max:	110kHz
Ripple & Noise:	10mV
Dimension:	L 19.5mm x W 6mm x H 10mm
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

The NMR100C is a part of NMR series DC/DC power supply. It has an operating temperature ranging from -40°C to +85°C and is available in SIP-4 package.

The NMR series of industrial temperature range DC/DC converters are the standard building blocks for on-board distributed power systems. They are ideally suited for providing single rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. Surface mount technology and advanced packaging materials produce rugged reliable performance over an extended temperature range from -40ºC to 85ºC.

Features:

1 kVDC isolation
Efficiency up to 80%
Wide temperature performance at full
watt load, –40°C to 85°C
Power density up to 0.90W/cm3
UL 94V-0 package material
Footprint from 1.17cm2
Industry standard pinout
5 V, 12 V, 15 V & 24 V input
5 V, 12 V & 15 V output
No heatsink required
Internal SMD construction
Fully encapsulated with toroidal magnetics
Custom solutions available
No electrolytic or tantalum capacitors
