Mill-Max | 0560-0-15-01-11-14-10-0

Manufacturer Part #

0560-0-15-01-11-14-10-0

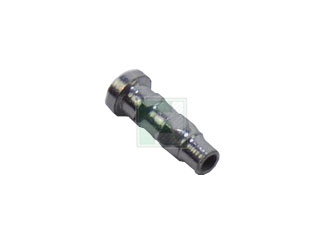

Press Fit 0.043 Leads Range 0.015-0.022 No Tail Pin Receptacle

ECAD Model:
Mfr. Name: Mill-Max
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Mill-Max 0560-0-15-01-11-14-10-0 - Technical Attributes
Attributes Table
Mounting Method: PCB Mount
Features & Applications

The 0560-0-15-01-11-14-10-0 is a Part of 0560 Series Press Fit 0.043 Leads Range 0.015-0.022 No Tail Receptacle.

Specifications:

  • Contact Used: #11, Standard 3 Finger Contact
  • Current Rating = 3 Amps
  • Beryllium Copper Alloy 172 (UNS C17200) per ASTM B 194
  • Properties of BERYLLIUM COPPER:
  • Chemical composition: Cu 98.1%, Be 1.9%
  • Temper as stamped: TD01
  • Properties after heat treatment (TH01):
  • Hardness: 36-43 Rockwell C
  • Mechanical Life: 100 Cycles Min.
  • Density: .298 lbs/in3
  • Electrical Conductivity: 22% IACS
  • Resistance: 10 miliohms Max
  • Operating Temperature: -55°C/+125°C
  • Melting point: 980°C/865°C (liquidus/solidus)

View the Available 0560 Series of Receptacles

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
5 Weeks
Minimum Order:
1000
Multiple Of:
1000
Total
$535.00
USD
Quantity
Unit Price
500
$0.545
1,000
$0.535
1,500
$0.53
2,500+
$0.52
