Manufacturer Part #
CLF10040T-151M-H

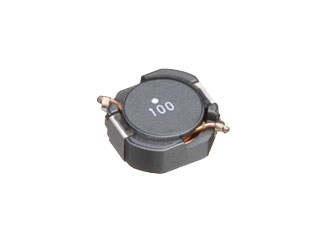

CLF Series 150 uH ±20 % Tolerance 380 mOhm DCR 1 A Shielded Power Inductor
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TDK | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:800 per Reel Mounting Method:Surface Mount |
||||||||||
| Date Code: | 2535 | ||||||||||
TDK CLF10040T-151M-H - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Ferrite shielded wire wound inductor Discontinuation NoticeFirst of all, we would like to thank you very much for your continuous cooperation with TDK and our products.This letter informs your company that TDK is planning to discontinue and stop production of the certain products we have been currentlyshipping to you.Due to unification, we had to decide to discontinue manufacturing the products listed below.This list shows your part number as well as our part number for each of end-of-life products and TDK part number of recommended alternativeproducts wherever available.We deeply regret to inform you of this discontinuation. However, because of above reason, please let us ask you for considering replacementwith TDK's alternative product wherever possible.In addition, please don't propose / recommend these products to new project.
Description:Due to unification, we had to decide to discontinue manufacturing the products listed below.This list shows your part number as well as our part number for each of end-of-life products and TDK part number of recommended alternative products wherever available.We deeply regret to inform you of this discontinuation. However, because of above reason, please let us ask you for considering replacement with TDK's alternative product wherever possible
You are in receipt of the following message as you are listed in our system to be the coordinator for EOLs regarding TDK brand products. Please refer to the attached official Notice from TDK's MAGNETICS Business Group for details concerning this change1. Last Time Buy order: March 31, 2026 2. The final delivery date: December 31, 2026
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CLF10040T-151M-H&field4=TDK&field18=https://p1na.futureelectronics.com/p/passives--inductors--power-inductors/clf10040t-151m-h-tdk-8064571
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CLF10040T-151M-H&field4=TDK&field18=https://p1na.futureelectronics.com/p/passives--inductors--power-inductors/clf10040t-151m-h-tdk-8064571
TDK CLF10040T-151M-H - Technical Attributes
| Inductance-Nom: | 150µH |
| Rated Current-Max: | 1A |
| Tolerance (%): | ±20% |
| Shielding: | Yes |
| DC Resistance: | 380mΩ |
| Core Material: | Ferrite |
| Test Frequency: | 100kHz |
| Operating Temp Range: | -40°C to +105°C |
| Storage Temperature Range: | -40°C to +105°C |
| No of Terminals: | 2 |
| Dimension: | L 10mm x W 9.7mm x H 3.8mm |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
800 per Reel
Mounting Method:
Surface Mount
