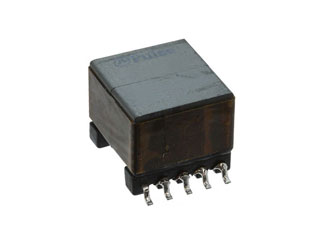

Pulse Electronics | PA1138NLT

Manufacturer Part #

PA1138NLT

EP 13 Series 57 V 127 uH 200 kHz 10 pin Flyback Transformer

ECAD Model:
Mfr. Name: Pulse Electronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Pulse Electronics PA1138NLT - Technical Attributes
Attributes Table
Type: Isolation and Data Interface (Encapsulated)
Inductance: 127µH
Primary:Secondary - Turns Ratio: 1:0.292:0.208
Operating Temp Range: -40°C to +125°C
Length: 14mm
Width: 17.65mm
Height - Max: 12.7mm
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
900
Multiple Of:
150
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,674.00
USD
Quantity
Unit Price
150
$1.89
300+
$1.86
