Manufacturer Part #
BD6380EFV-E2

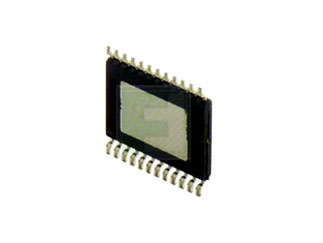

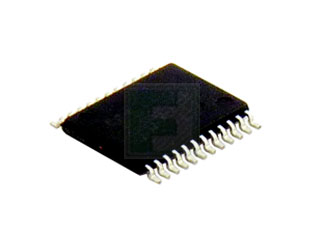

BD6380 Series 2.5 - 5.5 V 0.5 A Low Voltage Stepping Motor Driver - HTSSOP-24
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ROHM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Reel Package Style:HTSSOP-24 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
ROHM BD6380EFV-E2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
*** Update for PCN 112554 - Added more part numbers ***Title of change:LSI bonding wire material change from gold to copperReason for change:In order to ensure stable supply of our products, we would like to apply for a PCN, changing the bonding wire material from gold to copper.Planned first ship date September 1, 2025
At ROHM Electronics Philippines, Inc., LSI production building will be relocated to a new building in order to avoid risks associated with the aging of the existing building (Building D) and to ensure a stable supply.There are no 4Ms-related changes in the products which relocated to the new production building. Therefore, we believe that product quality is equivalent.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD6380EFV-E2&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/bd6380efv-e2-rohm-7000701
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD6380EFV-E2&field4=ROHM&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--motor-drivers/bd6380efv-e2-rohm-7000701
ROHM BD6380EFV-E2 - Technical Attributes
| Load Voltage: | 4V to 13.5V |
| No of Outputs: | Quad |
| Output Current-Max: | 500mA |
| Rated Power Dissipation: | 4W |
| Supply Voltage-Max: | 5.5V |
| Package Style: | HTSSOP-24 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
2000 per Reel
Package Style:
HTSSOP-24
Mounting Method:
Surface Mount
