Manufacturer Part #

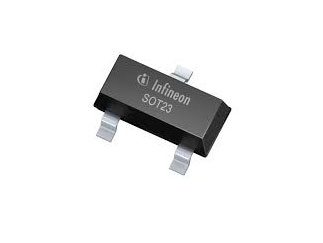

TLE49643MXTMA1
Hall effect switch dedicated for position detection applications
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10000 per Reel Package Style:SOT-23 (SC-59,TO-236) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon TLE49643MXTMA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TLE49643MXTMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--sensors--magnetic-hall-effect/tle49643mxtma1-infineon-3185992
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TLE49643MXTMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--sensors--magnetic-hall-effect/tle49643mxtma1-infineon-3185992
Infineon TLE49643MXTMA1 - Technical Attributes
Attributes Table
| Type: | Unipolar |
| Output Current: | 25mA |
| Supply Voltage: | 3V to 3.2V |
| Supply Current: | 1.1A to 2.5A |
| Sensing Range: | 12.5mT |
| Rise Time: | 0.5µs |
| Fall Time: | 0.4µs |
| Leakage Current: | 10µA |
| Power Dissipation: | 40mW |
| Operating Temp Range: | -40°C to +170°C |
| Storage Temperature Range: | -40°C to +150°C |
| No of Terminals: | 3 |
| Moisture Sensitivity Level: | 1 |
| Package Style: | SOT-23 (SC-59,TO-236) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
10,000+
$0.24
Product Variant Information section
Available Packaging
Package Qty:
10000 per Reel
Package Style:
SOT-23 (SC-59,TO-236)
Mounting Method:
Surface Mount
