STMicroelectronics | STWD100YNXWY3F

Manufacturer Part #

STWD100YNXWY3F

Watchdog timer circuit

ECAD Model:
Mfr. Name: STMicroelectronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
STMicroelectronics STWD100YNXWY3F - Technical Attributes
Attributes Table
Type: Watchdog Circuit
No of Outputs: Single
Supply Voltage-Max: 5.5V
Reset Timeout: 102ms
Output Type: Open Drain
No. of Monitors: 1
Supply Current-Max: 26µA
Output Current: 20mA
Power Dissipation: 0.32W
Watchdog Timers: 1
Operating Temp Range: -40°C to +125°C
Storage Temperature Range: -55°C to +150°C
Moisture Sensitivity Level: 1

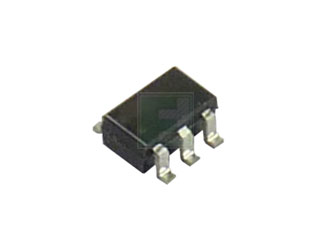

Package Style:  SOT-23-5 (SOT-25)
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
-1
Factory Lead Time:
24 Weeks
Minimum Order:
3000
Multiple Of:
3000
Total
$1,470.00
USD
Quantity
Unit Price
3,000
$0.49
6,000+
$0.48
