Manufacturer Part #
DF04

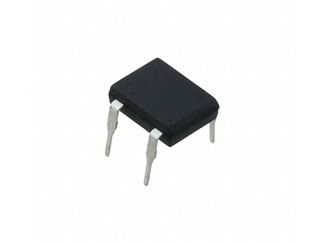

Bridge Rectifiers DF GPP 1A 400V Rect. Bridge Diode
| | |||||||||||
| | |||||||||||
| Mfr. Name: | SMC | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2520 | ||||||||||
Product Specification Section
SMC DF04 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=DF04&field4=SMC&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--diodes--bridge-rectifiers/df04-smc-7065047
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=DF04&field4=SMC&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--diodes--bridge-rectifiers/df04-smc-7065047
SMC DF04 - Technical Attributes
Attributes Table
| Type: | Single Phase |
| Average Rectified Current-Max: | 1A |
| Reverse Voltage-Max [Vrrm]: | 400V |
| Peak Current-Max: | 50A |
| RMS Voltage-Max: | 420V |
| Reverse Current-Max: | 5µA |
| Average Forward Current-Max: | 1A |
| Forward Voltage: | 1.1V |
| DC Blocking Voltage: | 400V |
| Operating Temp Range: | -55°C to +150°C |
| Thermal Resistance: | 40°C/W |
| Storage Temperature Range: | -55°C to +150°C |
| Diode Capacitance-Nom: | 25pF |
| No of Terminals: | 4 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
40
Germany:
40
Factory Lead Time:
N/A
Quantity
Unit Price
50
$0.0536
1,000
$0.0515
2,500
$0.0504
6,250
$0.0493
15,000+
$0.0468
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Mounting Method:
Through Hole
