Infineon | IKD04N60RATMA1

Manufacturer Part #

IKD04N60RATMA1

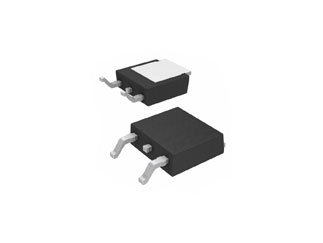

600 V 8 A 75 W Surface Mount IGBT Trench Field Stop - PG-TO252-3

ECAD Model:
Mfr. Name: Infineon
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Infineon IKD04N60RATMA1 - Technical Attributes
Attributes Table
CE Voltage-Max: 600V
Collector Current @ 25C: 8A
Power Dissipation-Tot: 75W
Gate - Emitter Voltage: 20V
Pulsed Collector Current: 12A
Collector - Emitter Saturation Voltage: 1.65V
Turn-on Delay Time: 14ns
Turn-off Delay Time: 146ns
Qg Gate Charge: 27nC
Reverse Recovery Time-Max: 43ns
Leakage Current: 100nA
Input Capacitance: 305pF
Operating Temp Range: -40°C to +175°C
No of Terminals: 3
Package Style:  TO-252-3 (DPAK)
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
19 Weeks
Minimum Order:
2500
Multiple Of:
2500
Total
$837.50
USD
Quantity
Unit Price
2,500
$0.335
5,000
$0.33
10,000
$0.325
12,500+
$0.32
