Manufacturer Part #

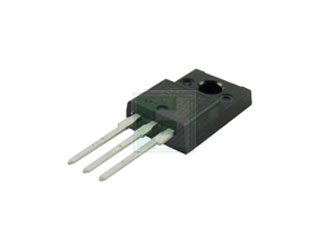

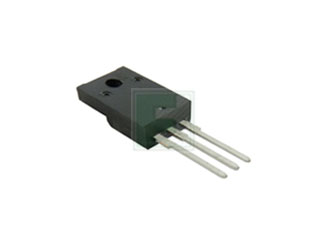

STF22N60M6
MOSFET PTD HIGH VOLTAGE
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:750 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics STF22N60M6 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=STF22N60M6&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/stf22n60m6-stmicroelectronics-7140355
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=STF22N60M6&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/stf22n60m6-stmicroelectronics-7140355
STMicroelectronics STF22N60M6 - Technical Attributes
Attributes Table
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 600V |
| Drain-Source On Resistance-Max: | 230mΩ |
| Rated Power Dissipation: | 30W |
| Qg Gate Charge: | 20nC |
| Gate-Source Voltage-Max [Vgss]: | 25V |
| Drain Current: | 15A |
| Turn-on Delay Time: | 13.6ns |
| Turn-off Delay Time: | 32ns |
| Rise Time: | 6.3ns |
| Fall Time: | 8.7ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 4.75V |
| Input Capacitance: | 800pF |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
750
$1.20
1,500
$1.19
3,000
$1.18
3,750+
$1.17
Product Variant Information section
Available Packaging
Package Qty:
750 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Surface Mount
