Manufacturer Part #

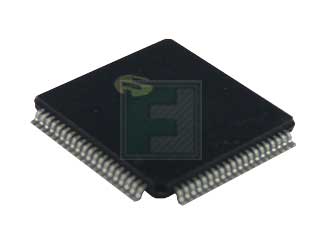

PIC24FJ512GU408-I/PT
PIC24F Series 32 kB RAM 512 kB Flash 16-Bit Microcontroller - TQFP-80
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:119 per Tray Package Style:TQFP-80 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2406 | ||||||||||
Microchip PIC24FJ512GU408-I/PT - Product Specification
Shipping Information:
ECCN:
PCN Information:
Microchip has released a new Errata for the PIC24FJ512GU410-Family-Silicon-Errata-and-Data-Sheet-Clarification of devices.Notification Status: FinalDescription of Change: Updated datasheet revision to current. Added data sheet clarifications 1 (Product Identification System), 2 (Serial Peripheral Interface (SPI)), 3 (Timer1) and 4 (Electrical Characteristics).Impacts to Data Sheet: NoneChange Implementation Status: CompleteDate Document Changes Effective: 04 Nov 2022
Part Status:
Microchip PIC24FJ512GU408-I/PT - Technical Attributes
| Family Name: | PIC24 |
| Core Processor: | PIC |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 512kB |
| RAM Size: | 32kB |
| Speed: | 32MHz |
| No of I/O Lines: | 69 |
| InterfaceType / Connectivity: | IrDA/I2C/LINbus/SPI/UART/USART/USB |
| Peripherals: | DMA/LCD/LCD/PWM |
| Number Of Timers: | 5 |
| Supply Voltage: | 2V to 3.6V |
| Operating Temperature: | -40°C to +85°C |
| On-Chip ADC: | 24-chx10-bit |
| On-Chip DAC: | 1-chx10-bit |
| Package Style: | TQFP-80 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
119 per Tray
Package Style:
TQFP-80
Mounting Method:
Surface Mount
