NKK Switches | LP0115CMKW01A

Manufacturer Part #

LP0115CMKW01A

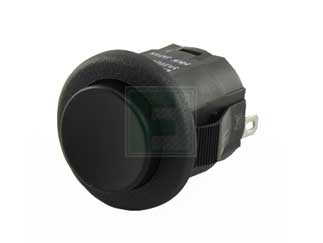

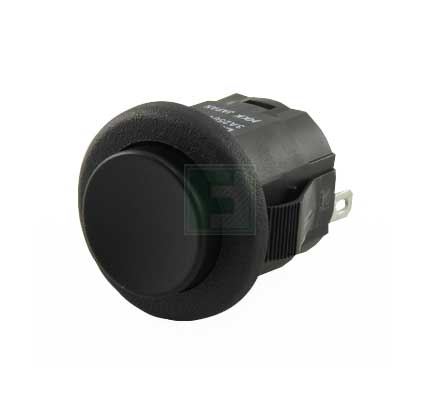

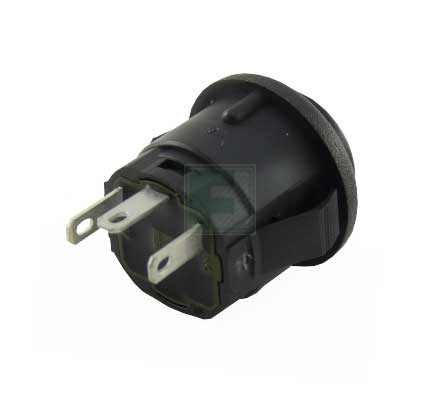

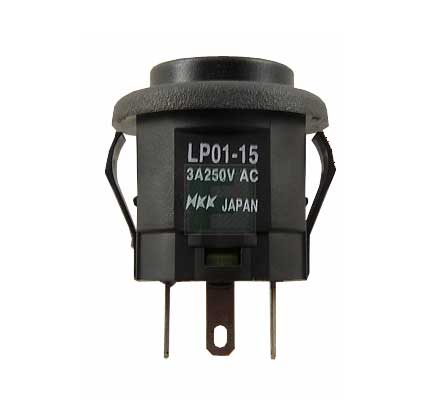

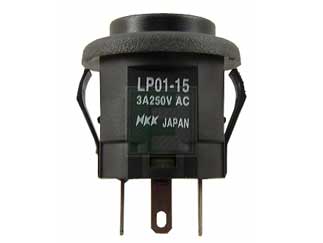

LP01 Series Short Body SPDT On-Momentary Quick Connect Push Button Switch

ECAD Model:
Mfr. Name: NKK Switches
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
NKK Switches LP0115CMKW01A - Technical Attributes
Attributes Table
Contact Current-Max: 3A
Switch Operation: On-Mom
Circuitry: SPDT
Termination Style: Solder Lug
Mounting Method: Panel Mount
Features & Applications

The LP0115CMKW01A is a SPDT On-Momentary Quick Connect Push Button Switch. These switches have smooth, slightly concave surface of cap designed to fit fingertip. Unique design and construction of cap prevents its removal and limits tampering.

Features:

  • Short body of .551” (14.0 mm) conserves behind-panel space
  • Environmentally friendly components and packaging materials meet RoHS Directive restricting use of hazardous materials
  • Power Level (silver): 3 A @ 125 V AC or 3 A @ 250 V AC or 3 A @ 30 V DC
  • Operating Temp Range: –25°C through +70°C (–13°F through +158°F)





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
13 Weeks
Minimum Order:
60
Multiple Of:
20
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$583.20
USD
Quantity
Unit Price
20
$9.84
40
$9.76
60
$9.72
80+
$9.67
