Référence fabricant
MCP1603EV

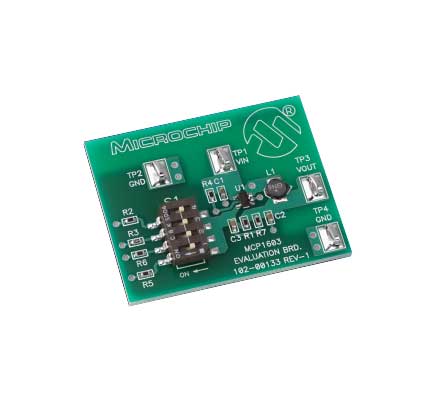

MCP1603 Series Buck Converter Evaluation Board
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | Microchip | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :1 par Bulk | ||||||||||
| Code de date: | |||||||||||
Microchip MCP1603EV - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=MCP1603EV&field4=Microchip&field18=https://p1na.futureelectronics.com/fr/p/development-tools--analog-power/mcp1603ev-microchip-7224116
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=MCP1603EV&field4=Microchip&field18=https://p1na.futureelectronics.com/fr/p/development-tools--analog-power/mcp1603ev-microchip-7224116
Microchip MCP1603EV - Caractéristiques techniques
| Application Type: | DC/DC Converters |
| Core Supported: | MCP1603 |
Fonctionnalités et applications
MCP1603EV Buck Converter Evaluation Board is designed to demonstrate Microchip’s MCP1603 in an adjustable output voltage configuration. The board is a fully functional platform to evaluate the MCP1603 buck regulator over its entire input voltage, output voltage, and current range.
The Board uses Microchip’s MCP1603 device in a step-down application. The MCP1603 is a 500 mA synchronous buck regulator that features both Pulse Frequency Modulation (PFM) and Pulse Width Modulation (PWM). The PFM mode is used at light loads to improve system efficiency while the 2.0 MHz PWM mode is entered at heavy loads.
Features:
- Compact size and low profile 500 mA converter design
- Wide input voltage range: 2.7 V to 5.5 V
- Five different output voltage setting: 0.8 V, 1.2 V, 1.8 V, 2.5 V, 3.3 V
- Test points for connecting input voltage source and external load
To Learn More About MCP1603X Product Family, Click Here
Emballages disponibles
Qté d'emballage(s) :
1 par Bulk
