Référence fabricant
STEVAL-CBL005V1
Demo Board for LNB Power Supply based on LNBH23
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | STMicroelectronics | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :1 par Bulk | ||||||||||
| Code de date: | |||||||||||
STMicroelectronics STEVAL-CBL005V1 - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Statut du produit:
STMicroelectronics STEVAL-CBL005V1 - Caractéristiques techniques
| Application Type: | Power Management |
| Core Supported: | LNBH23 |
Fonctionnalités et applications

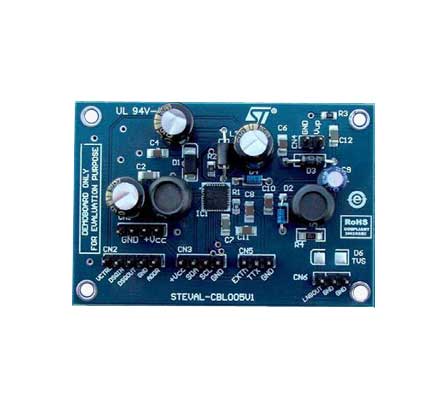

ST Microelectronics offers a complete tool line, tailored to the STEVAL-CBL005V1 Demo Board for LNB Power Supply based on LNBH23.
The STEVAL-CBL005V1 LNB power supply demonstration board implements a DC-DC converter based on the LNBH23 device. The LNBH23 is an LNB supply and control IC with step-up and an I2C interface. It is used to power an LNB on a dish antenna for reception of satellite TV signals.
The LNBH23 is an integrated solution for supplying/interfacing satellite LNB modules in accordance with international standards. This solution is simple, inexpensive, shows very good performance and has a low external component count.
The LNBH23 demonstration board includes an I2C™ bus interface and an internal 22 kHz tone generator that is factory-trimmed to comply with widely accepted standards, and can be controlled through the DSQIN pin (TTL compatible). This allows immediate DiSEqC™ data encoding.
Due to the fully integrated step-up DC-DC converter, it works with a single input voltage supply source ranging from 8 V to 15 V.
Features :
- Integrated DC-DC converter
- Single input supply voltage: from 8 V to 15 V
- I2C™ bus interface for the IC control and diagnostics
- Integrated 22 kHz tone generator, factorytrimmed in accordance with widely accepted standards
- User-friendly graphical user interface ("LNBxxx control suite") software included in the kit
- Implements the LNBH23 in a QFN32 package
To view complete family of STEVALx - Click here
To view complete family of LNBH23x - Click here
Emballages disponibles
Qté d'emballage(s) :
1 par Bulk
