Référence fabricant
1-770969-0

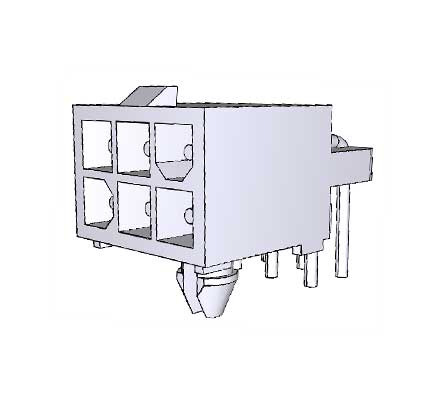

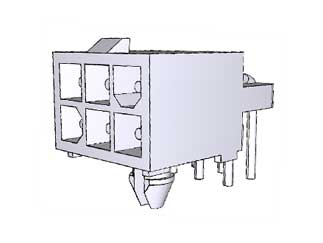

Mini-Universal MATE-N-LOK 6 Position Dual Row Through-Hole Right Angle Header
|
|
|||||||||||
|
|
|||||||||||
| Nom du fabricant: | TE Connectivity | ||||||||||
| Emballage standard: |
Product Variant Information section
Emballages disponiblesQté d'emballage(s) :1 par Bag Méthode de montage :Through Hole |
||||||||||
| Code de date: | 2422 | ||||||||||
TE Connectivity 1-770969-0 - Spécifications du produit
Informations de livraison:
Code HTS:
ECCN:
Informations PCN:
General Product Description: Mini UMNL - Header AssemblyDescription of ChangesAdding an additional resin (Nylon) option for this product. Necessary qualification tests as per the Product specification were performed and passed. Reason for Changes:Standardizing our global resins and adding an additional resin option to help avoid global shortages and interruptions in supplyFirst Ship Date of Changed Items (Changed Parts Only): 25-SEP-2023
Statut du produit:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1-770969-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/1-770969-0-te-connectivity-3358348
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1-770969-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/1-770969-0-te-connectivity-3358348
TE Connectivity 1-770969-0 - Caractéristiques techniques
| No of Positions: | 6 |
| Pitch: | 4.14 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 9.5A |
| Contact Plating: | Tin |
| Material: | Nylon |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Pin Headers |
| Mating Type: | Locking Tab |
| Color: | White |
| Méthode de montage : | Through Hole |
Fonctionnalités et applications
Product Specification:
- Connector
- Header
- Connector Style = Plug
- Contact Type = Pin
- Through Hole Contact Termination Type
- Centerline 4.14 mm [0.163 in]
- Number of Positions are 6
- Applies to Printed Circuit Board
- With Mating Retention
- Nylon Housing Material
View the 1-770969 series of Header
