Manufacturer Part #
1-640383-1

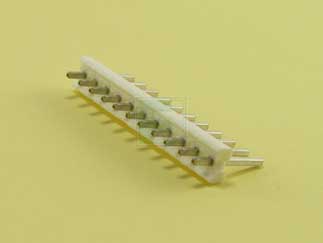

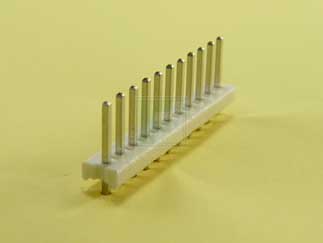

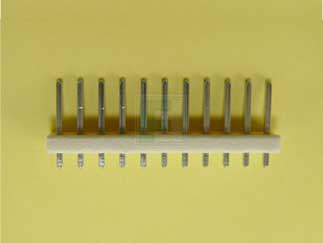

MTA-156 11 Position Single Row Through-Hole Straight Wire to Board Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-640383-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-640383-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/4731089
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-640383-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/4731089
TE Connectivity 1-640383-1 - Technical Attributes
Attributes Table
| No of Positions: | 11 |
| Pitch: | 3.96 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Type: | Wire to Board |
| Mounting Method: | Through Hole |
Features & Applications
The 1-640383-1 is a MTA-156 11 Position Single Row Through-Hole Straight Wire to Board Header
Product Features:
- Connector Type = Header
- Product Line = MTA-156
- PCB Mounting Orientation = Vertical
- PCB Mount Retention = Without
- Mating Connector Lock = Without
- Four Points of Contact = Without
- Shrouded = No
- Mounting Ears = Without
- Post Size (mm [in]) = 1.14 [.045]
- Number of Positions = 11
- Centerline (mm [in]) = 3.96 [0.156]
- Narrow = No
- Post Number(s) Omitted = None
- Solder Tail Contact Material = Copper Alloy
- Contact Type = Pin
- Contact Shape = Square
- Contact Plating, Mating Area, Material = Tin
- Contact Base Material = Copper Alloy
- Connector Style = Plug
- Housing Color = White
- Mating Alignment = Without
- UL Flammability Rating = UL 94V-0
- Housing Material = Polyester
View the Complete MTA-156 Series of Header Plug
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
500
$0.47
1,000
$0.465
1,500
$0.46
2,500+
$0.45
Product Variant Information section
Available Packaging
Package Qty:
500 per Box
Mounting Method:
Through Hole
