Manufacturer Part #

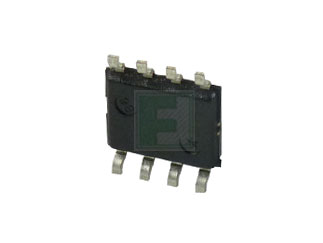

MC33039DR2G
MC Series 5.5 V Surface Mount Closed Loop Brushless Motor Adapter - SOIC-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi MC33039DR2G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC33039DR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/5188111
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC33039DR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/5188111
onsemi MC33039DR2G - Technical Attributes
Attributes Table
| Motor Type: | Brushless DC |
| No of Outputs: | Single |
| Output Current-Max: | 20mA |
| Supply Current: | 1.8mA to 5mA |
| Rated Power Dissipation: | 650mW |
| Supply Voltage-Max: | 9V |
| Supply Voltage: | 5.5V to 8.25V |
| Operating Temp Range: | -40°C to +85°C |
| Package Style: | SOIC-8 |
| Mounting Method: | Surface Mount |
Features & Applications
The MC33039DR2G is a part of MC33039 series motor adapter. It has a storage temperature ranging from -65°C to +150°C and its available in SOIC-8 package.
The MC33039 is a high performance closed−loop speed control adapter specifically designed for use in brushless DC motor control systems. Implementation will allow precise speed regulation without the need for a magnetic or optical tachometer.
Features:
- Digital Detection of Each Input Transition for Improved Low Speed Motor Operation
- TTL Compatible Inputs With Hysteresis
- Operation Down to 5.5 V for Direct Powering from MC33035 Reference
- Internal Shunt Regulator Allows Operation from a Non−Regulated Voltage Source
- Inverter Output for Easy Conversion between 60°/300° and 120°/240° Sensor Phasing Conventions
- Pb−Free Packages are Available
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
19 Weeks
Quantity
Unit Price
2,500+
$0.81
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-8
Mounting Method:
Surface Mount
