Manufacturer Part #
NXH300B100H4Q2F2PG

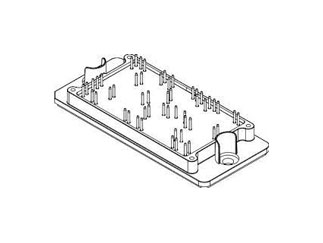

1118 V 73 A 194 W Trench Field Stop Dual IGBT Module - 53-PIM/Q2PACK
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:36 per Tray Mounting Method:Chassis Mount | ||||||||||
| Date Code: | 2434 | ||||||||||
Product Specification Section
onsemi NXH300B100H4Q2F2PG - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NXH300B100H4Q2F2PG&field4=onsemi&field18=https://p1na.futureelectronics.com/p/8158558
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NXH300B100H4Q2F2PG&field4=onsemi&field18=https://p1na.futureelectronics.com/p/8158558
onsemi NXH300B100H4Q2F2PG - Technical Attributes
Attributes Table
| CE Voltage-Max: | 1000V |
| Power Dissipation-Tot: | 194W |
| Gate - Emitter Voltage: | 20V |
| Pulsed Collector Current: | 219A |
| Collector - Emitter Saturation Voltage: | 1.8V |
| Turn-on Delay Time: | 95ns |
| Turn-off Delay Time: | 267ns |
| Qg Gate Charge: | 340nC |
| Reverse Recovery Time-Max: | 19ns |
| Leakage Current: | 400nA |
| Input Capacitance: | 6323pF |
| Operating Temp Range: | -40°C to +150°C |
| Mounting Method: | Chassis Mount |
Pricing Section
Global Stock:
36
USA:
36
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
36+
$152.19
Product Variant Information section
Available Packaging
Package Qty:
36 per Tray
Mounting Method:
Chassis Mount
