Manufacturer Part #

7-1393211-1

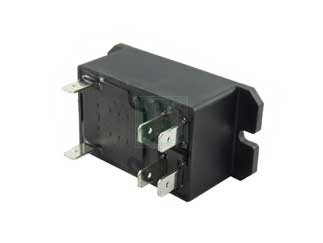

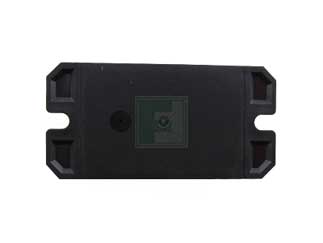

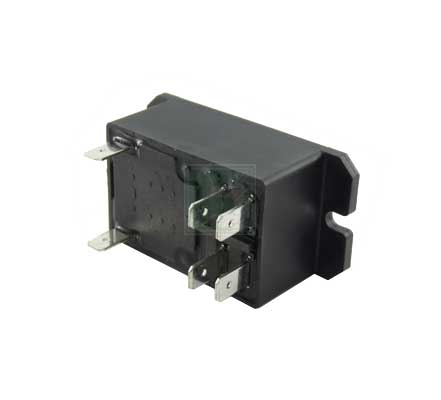

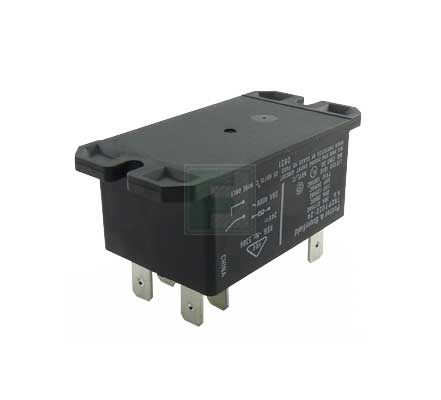

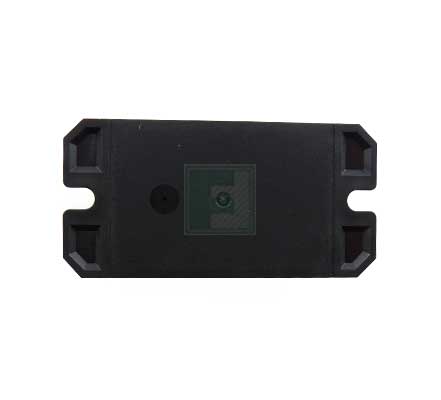

T92 Series 30 A DPST (2 Form A) 24 VDC Flange Mount General Purpose Power Relay

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 1823
Product Specification Section
Technical Attributes
Attributes Table
Contact Form: DPST (2 Form A)
Nominal Coil Voltage: 24V
Contact Current-Max: 30A
Termination Style: Quick Connect
Mounting Method: Flange Mount
Features & Applications

The 7-1393211-1 is a T92 Series 30 A DPST-NO 24 VDC Flange Mount General Purpose Power Relay.

Features:

  • 30A, 2 form A (NO) and 2 form C (CO) switching capability
  • Designed to control compressor loads to 3.5 tons, 110LRA / 25.3FLA
  • Meets requirements of UL 508 and UL 873 spacings - 8mm through air, 9.5mm over surface
  • Meets requirements of VDE 8mm spacing, 4kV dielectric coil-to-contact
  • Meets requirements of UL Class F construction
  • UL approved for 600VAC switching (1.5HP)
  • New screw terminal version (consult factory for availability, ratings)

Applications:

  • HVAC
  • Residential or commercial appliances
  • Industrial controls





Pricing Section
Global Stock:
273
USA:
153
Germany (Online Only):
120
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
15 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$17.39
USD
Quantity
Web Price
1
$17.39
4
$16.74
10
$16.33
25
$15.92
40+
$15.72
