Sullins | EBM10DSXH

Manufacturer Part #

EBM10DSXH

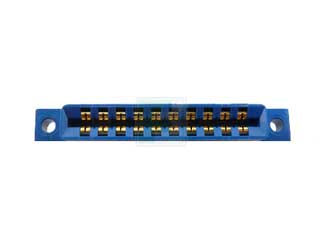

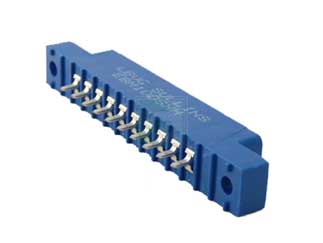

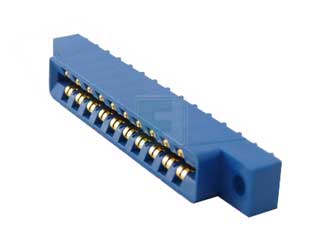

20 Position ( 2 x 10 ) 3.96 mm Center Dip Solder Edgecard Connector

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins EBM10DSXH - Technical Attributes
Attributes Table
Type: Board to Board (Card Edge)
Style/Orientation: Receptacle
No of Positions: 10
Pitch: 3.96 mm
Termination: Solder Pins/Tails
Mounting Method: Through Hole
Features & Applications

The EEBM10DSXH is a 3.96 mm 20 Position Phosphor Bronze (Standard) card Edge connectors

Specifications:

  • Accommodates .062" ± .008" [1.57mm ± .20mm] mating PC board
  • Molded-in Key available In-between or in Contact Key.
  • 3 AMP current rating per contact (for 5 AMP application, consult factory)
  • 30 milliohm MAX at rated current

Applications:

  • Industrial
  • Automotive
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
3 Weeks
Minimum Order:
1000
Multiple Of:
1
Total
$2,850.00
USD
Quantity
Unit Price
1
$3.08
20
$3.01
50
$2.97
125
$2.94
300+
$2.85
