Manufacturer Part #
3-640706-1

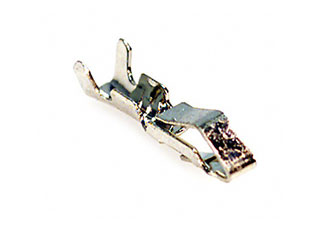

SL-156 Bright Tin 24-18 AWG Crimp Socket Contact
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10000 per Bag Mounting Method:Wire Mount | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 3-640706-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Product Description:SL-156Description of Changesplease be aware of an upcoming material change to the listed part numbers due to raw material supplier optimization. The change is to ensure supply chain excellence on lead time commitment and in time delivery. The change follows a strict procedure which guarantees quality, ability to supply and no change to products performance.Reason for Changes:Change made to the materialFirst Ship Date of Changed Items (Changed Parts Only): 30-DEC-2022
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-640706-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/3-640706-1-te-connectivity-5828140
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-640706-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/3-640706-1-te-connectivity-5828140
TE Connectivity 3-640706-1 - Technical Attributes
| Type: | Contact |
| Contact Termination: | Crimp Terminal |
| Wire Gauge: | AWG 24-18 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 250V |
| Mounting Method: | Wire Mount |
Features & Applications
The 3-640706-1 is a SL-156 Bright Tin 24-18 AWG Crimp Socket Contact.
The AMP SL-156 connectors shown on the following pages are designed to mate with .045 [1.14] square or round post headers or staked posts on .156 [3.96] centers. The wire-to-board connector is a two-piece connector system with the wire crimped to the contact, then inserted into the housing. This product mates with the MTA-156 flat, polarized and friction lock header, or staked posts (not MTA-156 shrouded headers).
Features:
- Termination Method to Wire/Cable = Crimp
- Wire Size (mm² [AWG]) = 0.9-0.2² [18-24]
- Used For = SL-156 Housings
- Wire Insulation Diameter (mm [in]) = 2.79 [0.110]
- Unmating Force = High
- Mating Force = High Force
- Contact Configuration = SL-156 Contacts
- Contact Plating, Mating Area, Material = Bright Tin
- Contact Base Material = Brass
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
10000 per Bag
Mounting Method:
Wire Mount
