EDAC | 305-012-500-202

Manufacturer Part #

305-012-500-202

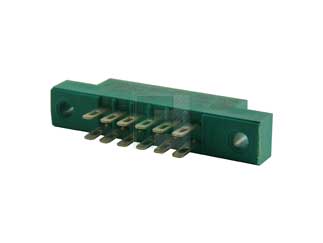

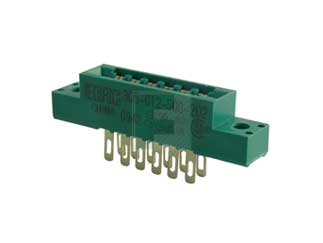

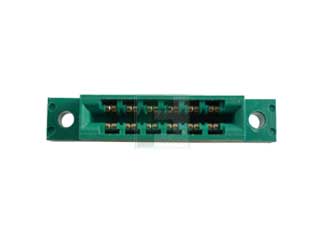

305 Series Board to Board Receptacle 3.96 mm Through Hole Card Edge Connector

ECAD Model:
Mfr. Name: EDAC
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
EDAC 305-012-500-202 - Technical Attributes
Attributes Table
Type: Board to Board (Card Edge)
Style/Orientation: Receptacle
No of Positions: 12
No of Rows: 2
Pitch: 3.96 mm
Termination: Solder Pins/Tails
Material: Thermoplastic Resin
Contact Plating: Gold
Contact Resistance: 10mΩ
Current Rating: 5A
Operating Temp Range: -65°C to +105°C
Color: Green
Mounting Method: Through Hole
Features & Applications

The 305-012-500-202 is a part of 305 Series 0.46 x .013 P.C Tail Dual row 12 contact green color standard length Card Edge Connector without mounting Lug

Features:

  • .156(3.96) contact spacing x.140(3.56) row spacing
  • Accepts .062(1.57) nominal thickness P.C.board
  • Low Profile Insulator body .460(11.68)
  • Contact termination options include P.C.tail, wire hole & extender board bends
  • Large Variety of mounting options
  • Pre-assembled card guides available
  • Accepts between contact and in-contact polarizing keys

Specifications:

  • Insulator material : thermoplastic polyester, UL94V-0
  • Contact Material: copper, Nickel, Tin alloy CA-725
  • Contact Plating: Gold on the mating Area, tin on the contact tails, nickel underplate
  • Contact rating: 5 Amp
  • Contact Resistance: 10 Ω maximum
  • Dielectric withstanding voltage: 1800 VAC rms at sea level between adjacent contacts
  • Insulation resistance: 500 MΩ
  • Operating Temperature : -65° to 105°C
  • Insertion force:16 OZ(4.45N)
  • Withdrawal Force : 1 OZ (.28N)






Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
9 Weeks
Minimum Order:
25
Multiple Of:
25
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$109.00
USD
Quantity
Unit Price
25
$4.36
75
$4.29
100
$4.27
250
$4.22
375+
$4.16
