Manufacturer Part #

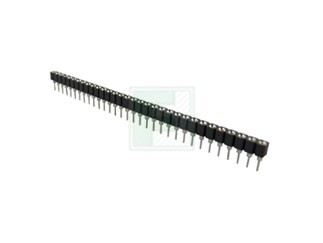

AW 127-32/Z-T

4 Position Single Row 2.54 mm Pitch Machined Contacts Tin Plated Socket

ECAD Model:
Mfr. Name: ASSMANN WSW Components
Standard Pkg:
Date Code:
Product Specification Section
Features & Applications

The AW127-32/Z-T-R is a 4 Position 17.5 mm Straight Panel Mount Dual Stud TB Assembly.

Product Specifications:

  • Materials:
    • Pin: Brass, Machined, CuZn38Pb2
    • Clip: Beryllium Copper, Heat Treated
    • Plating Pin: Tin Plated - 2um/80µ” Nickel, 5um/200“
    • Plating Inner Contact: 2um/80µ” Nickel
    • Insulator: Polyamide, Glass Filled, UL94V-0
    • Operating Temperature: -40°C ~ +105°C
    • Soldering Temperature: 260°C 10’s max.
  • Electrical:
    • Current Rating: 3 A/Contact Max.
    • Contact Resistance: <4 MΩ/Contact
    • Insulation Resistance: >1,000 MΩ at V=100 V
    • Operating: 60 V AC/DC
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
20 Weeks
Minimum Order:
1000
Multiple Of:
200
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$950.00
USD
Quantity
Web Price
200
$1.16
400
$0.975
600
$0.965
1,000
$0.95
2,000+
$0.93
